Varminpool空气源热泵泳池机 220v/60Hz 带 Wi-Fi 功能(变频35KW)

以下技术资料为英文原文。

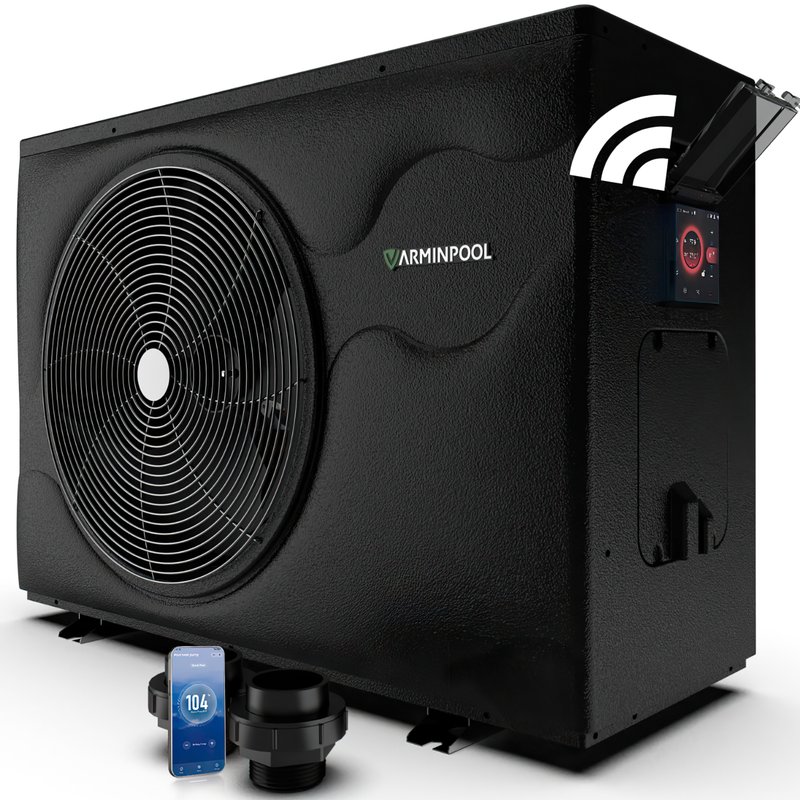

SWIMMING POOL HEAT PUMP

MODEL KSPF-035L1VUA4

Power Supply 208-230V~ 60Hz

Waterproof Grade IPX4

Electrical Shockproof I

Max power input 24740 Btu/ h

Max current (A) 33.5 A

Refrigerant type/quantity R32/49.4 Ozs

GWP / CO2eq 675/0 .9450

Heating Capacity(80°FAir 80°F Water ) 30000~ 120000 Btu/ h

Power Input(80°F Air 80°F Water ) 1910~ 18200 Btu/ h

COP(80°F Air 80°F Water ) 6.60~ 12 .30

Heating Capacity(60°FAir 80°F Water ) 21800~87000 Btu/ h

Power Input (60°F Air 80°F Water ) 2870~ 17700 Btu/ h

COP(60°F Air 80°F Water ) 4 .80~7 .60

Maximum working pressure of heat exchanger 4 .4 MPa

Maximum working pressure of exhaust side 2 .5 MPa

Maximum working pressure of suction side 4 .4 MPa

Running (Air) temperature range 5℉~ 110℉

Water flow (gpm) 52 .0

Pressure loss of water side : 15 kPa

Noise 49~59 dB (A )

Net weight (lbs) 176

Dimension L * W * H ( inch) 43.0*17 .5*29.2

Factory Number (On The Bar Code )

Manufactured Date (On The Bar Code )
