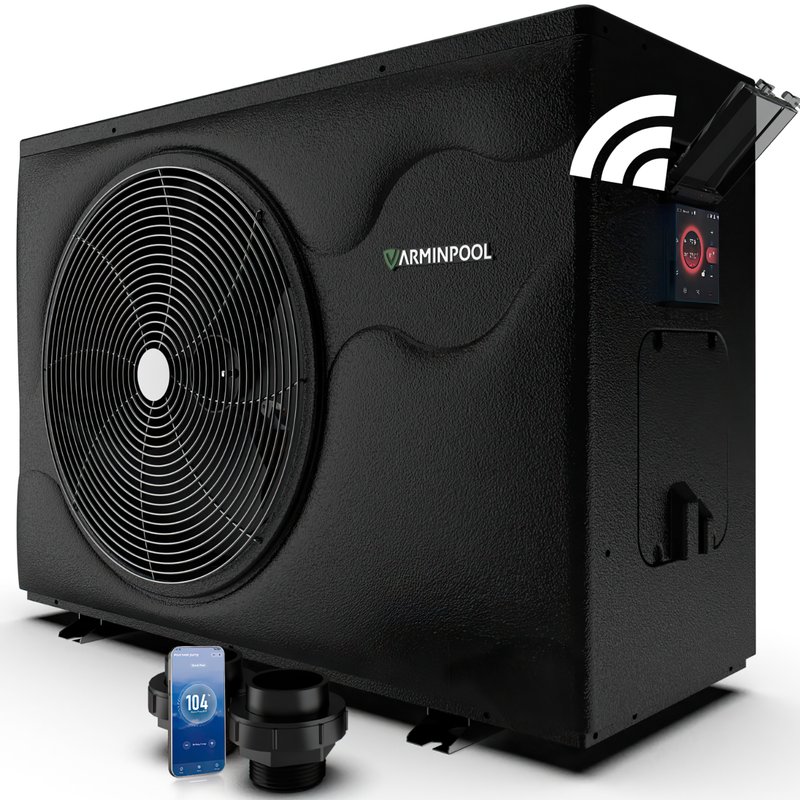

Varminpool 220v/60Hz Wi-Fi 35KW) — Heat Pump Machine
| Item No. | 1616-005617-05E0B |
| Category | Home & Equipment |
| English Name | Heat Pump Machine |
| Chinese Name | Varminpool空气源热泵泳池机 220v/60Hz 带 Wi-Fi 功能(变频35KW) |
| HS Code | 8419190000 |
| Material | Plastic, Iron |
| Application | Pool heating |
SWIMMING POOL HEAT PUMP
MODEL KSPF-035L1VUA4
Power Supply 208-230V~ 60Hz
Waterproof Grade IPX4
Electrical Shockproof I
Max power input 24740 Btu/ h
Max current (A) 33.5 A
Refrigerant type/quantity R32/49.4 Ozs
GWP / CO2eq 675/0 .9450
Heating Capacity(80°FAir 80°F Water ) 30000~ 120000 Btu/ h
Power Input(80°F Air 80°F Water ) 1910~ 18200 Btu/ h
COP(80°F Air 80°F Water ) 6.60~ 12 .30
Heating Capacity(60°FAir 80°F Water ) 21800~87000 Btu/ h
Power Input (60°F Air 80°F Water ) 2870~ 17700 Btu/ h
COP(60°F Air 80°F Water ) 4 .80~7 .60
Maximum working pressure of heat exchanger 4 .4 MPa
Maximum working pressure of exhaust side 2 .5 MPa
Maximum working pressure of suction side 4 .4 MPa
Running (Air) temperature range 5℉~ 110℉
Water flow (gpm) 52 .0
Pressure loss of water side : 15 kPa
Noise 49~59 dB (A )
Net weight (lbs) 176
Dimension L * W * H ( inch) 43.0*17 .5*29.2
Factory Number (On The Bar Code )
Manufactured Date (On The Bar Code )
Packaging & Logistics
| Pieces per carton | 1 |
| Carton dimensions (L×W×H) | 113 × 74 × 47 cm |
| Carton weight | 98 kg |
