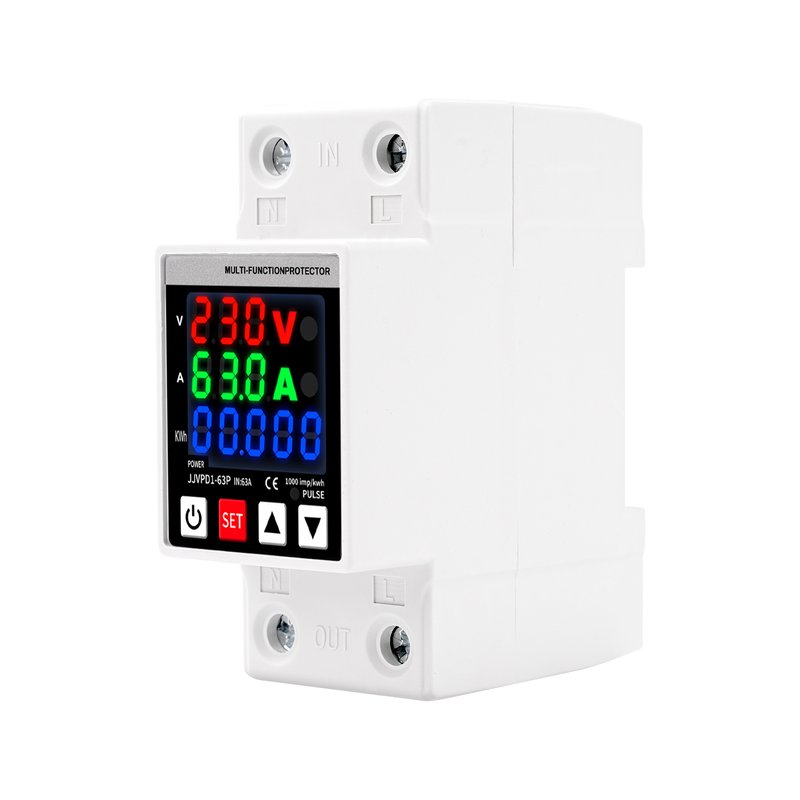

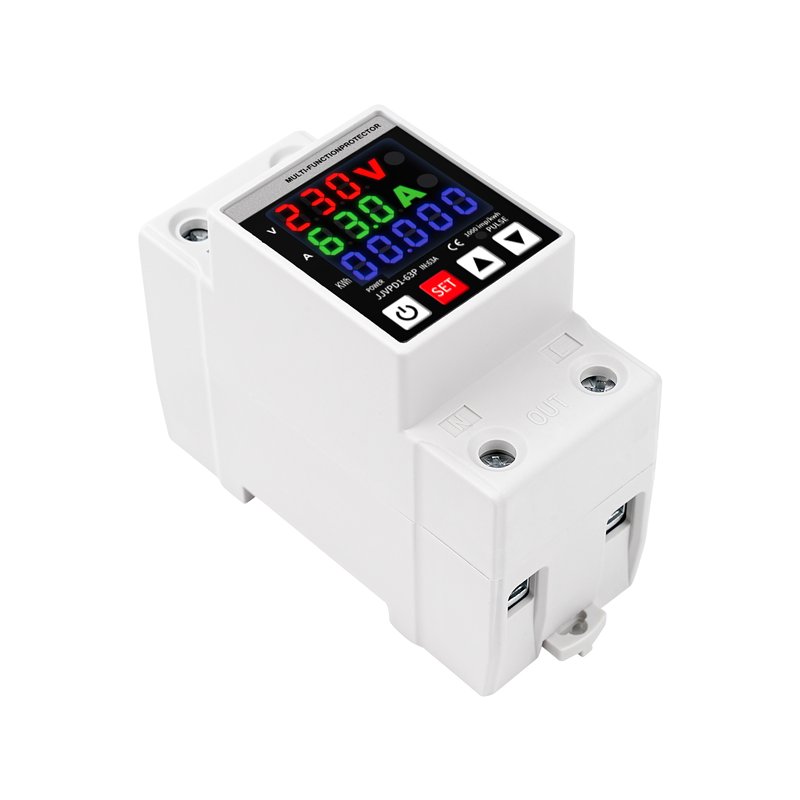

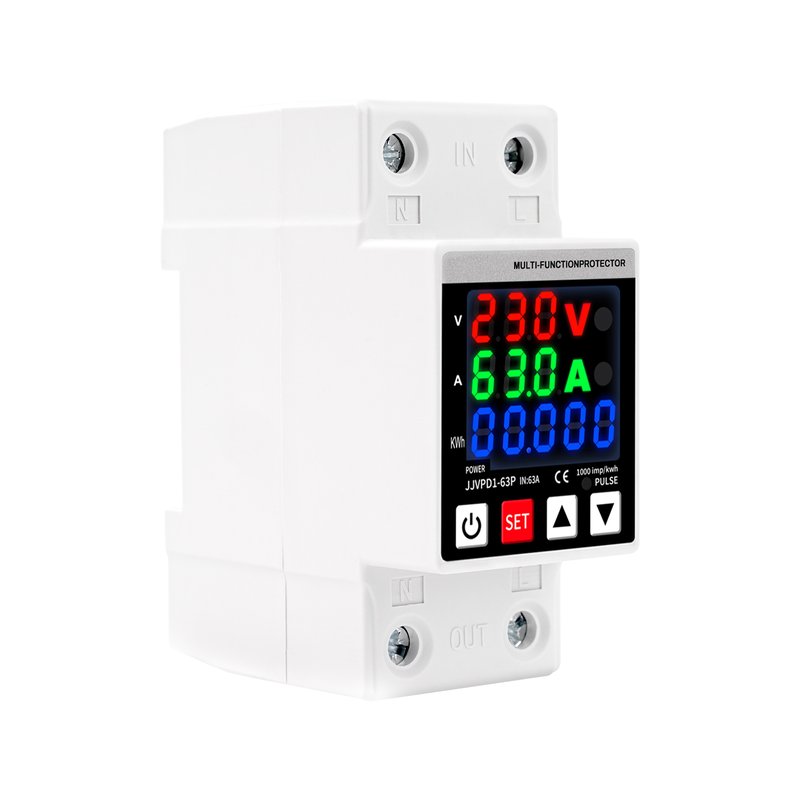

AC230V 63A JJVPD1-63P — Overcurrent Protector

Features

1. Intelligent protector: This is an intelligent protector that integrates overvoltage, undervoltage and overcurrent protection. When the line has overvoltage, undervoltage or overcurrent faults, the protector can immediately cut off the power to prevent the electrical equipment from burning. When the line returns to normal, it can automatically connect the line.

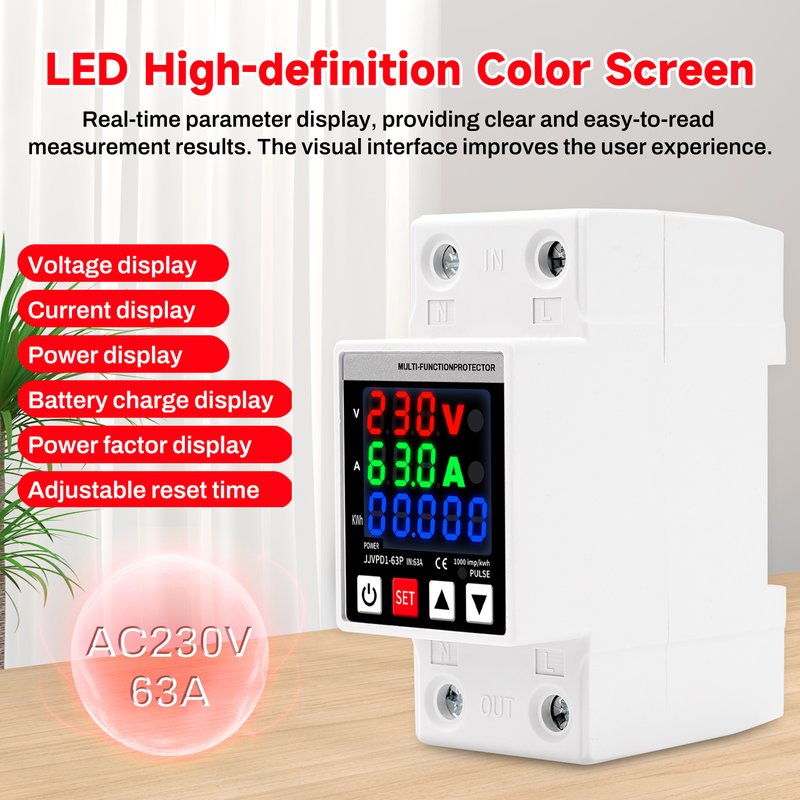

2. High-definition color screen: The overvoltage and undervoltage protector is equipped with an LED high-definition color display screen, which displays parameters such as voltage, current, power, power factor and frequency in real time, and provides clear and easy-to-read measurement results. The visual interface improves the user experience.

3. Adjustable self-reset: The overvoltage, undervoltage, overcurrent protection value and reset time of the overvoltage and undervoltage protector can be set as needed. The number of continuous overcurrent protection can be adjusted from 1 to 20 times, and the function is closed by default (if set to 2 times, the first overload will be self-reset and the second consecutive overload will be directly powered off).

4. Flame retardant material: The shell of the overvoltage and undervoltage protector is made of PC flame retardant material, which is impact-resistant, corrosion-resistant, has stable performance and long service life.

5. Wide application: The intelligent protector is mainly used in distribution lines of household electricity, collective dormitories, industrial electricity, shopping malls, etc.

Specifications

Material: PC

Rated voltage: AC 230V

Rated current: 63A

Input voltage: AC 140-300V

Overvoltage protection value: 230-300V (default 270V)

Undervoltage protection value: 140-210V (default 170V)

Overcurrent protection value: 63A (default 40A)

Overcurrent recovery value: 0.5-62.5A

Recovery delay time: 1-500 seconds (default 30 seconds)

Action time: 0.1-30 seconds (default 1 second)

Continuous overcurrent fault times: 1-20 times (default closed)

Electrical mechanical life: >=100000 times

Self-power consumption: <=2W

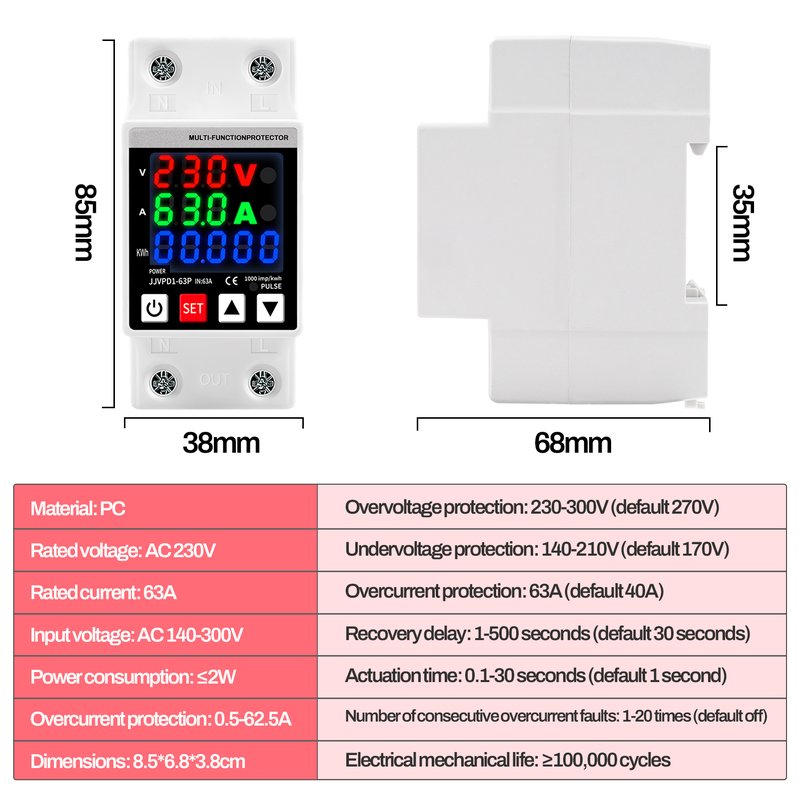

Size: 8.5*6.8*3.8cm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*Overvoltage and undervoltage protector

1*Instruction manual (English)
