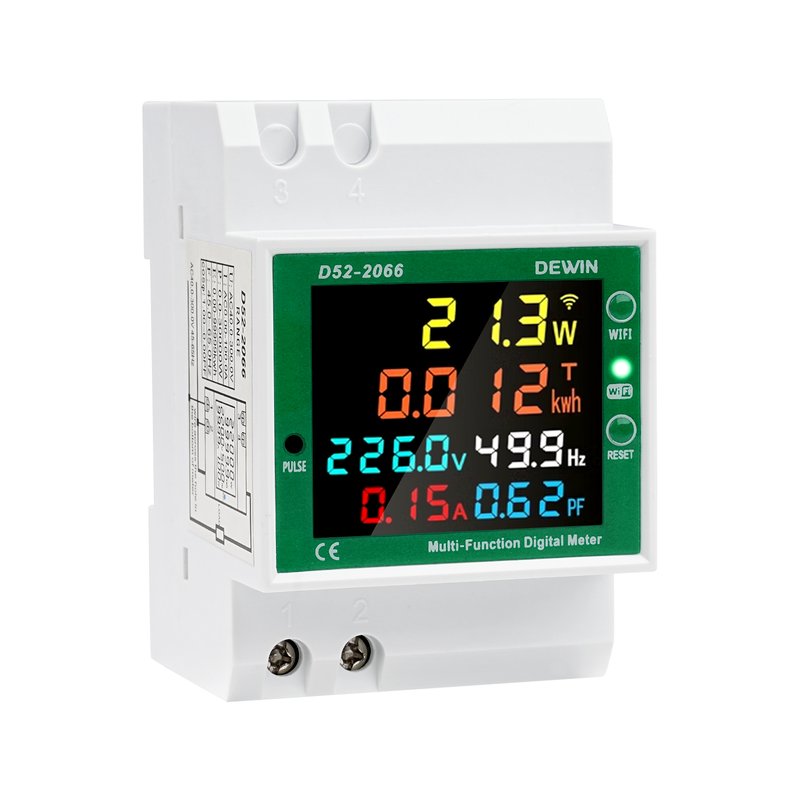

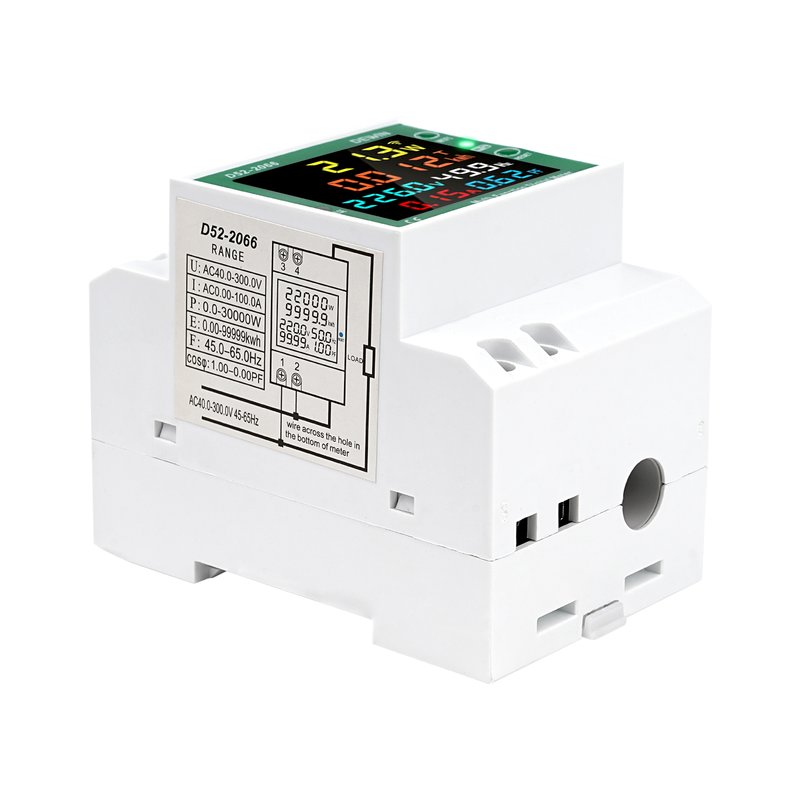

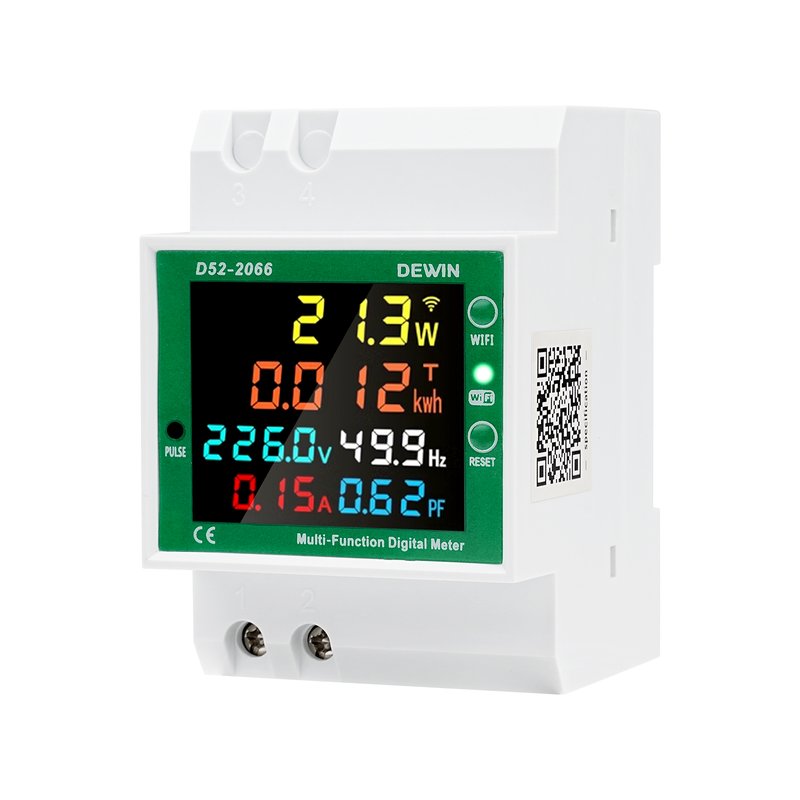

220V tuya APP AC40-300 ct WIFI — Numerical Meter

Main purpose:

The rail-type digital display measuring meter is an electric meter instrument that can measure a variety of electrical parameters. It has a variety of functions and measurement ranges, and can measure various electrical parameters such as voltage, current, power, electricity, power factor, frequency, etc.

​

Features

1. Six-in-one digital ammeter: One interface displays 6 measurement parameters at the same time, including voltage: AC 40-300V, current: 0-100A, power: 0-45000W, electric energy: 0-9999Kwh, frequency: 45-65Hz, power factor: 0-1PF.

2. Better visual experience: Color LCD high-definition display screen, 6 different color screens, 178° field of view without blind spots, with backlight function, clearly visible day and night, making it easy for you to view data.

3. One-click clearing function: You can easily clear meters of different measurement levels to ensure data accuracy and continuity. This function is your right assistant in the testing and monitoring process, making your work more efficient.

4. WiFi control: Intelligent control can be done through tuya APP, real-time monitoring of data and control of equipment can be used to re-manage power and save money.

5. Data storage: When the power is cut off, the last test power data is automatically stored. When the power is reconnected, the multifunctional measuring meter will continue to accumulate data without worrying about data loss due to sudden power outages. Press and hold the reset button for five seconds, and the battery meter will be reset.

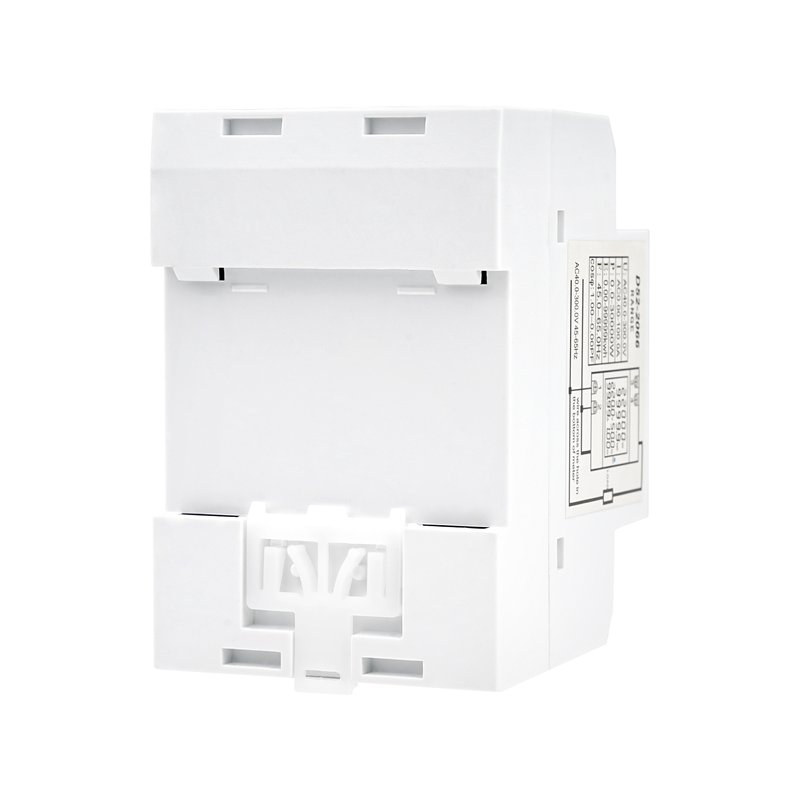

6. Easy to install: The multi-function measuring meter is installed on the universal DIN35mm standard rail, no screws are required, it is easy to install, and can be used indoors or outdoors.

7. Wide application: The electric energy meter is made of high-quality PC flame-retardant material, which is safe and reliable. It is widely used in power metering systems, schools, markets, household appliances, industry, laboratories, etc.

Specifications

Product name: Rail type digital display measuring meter

Material: PC flame retardant material

Voltage: AC 40-300V

Current: 0-100A

Power: 0-30000W

Electric energy: 0-9999Kwh

Frequency: 45-65Hz

Power factor: 0-1PF

Type: Built-in CT

Size: 8*6.4*5.4cm

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

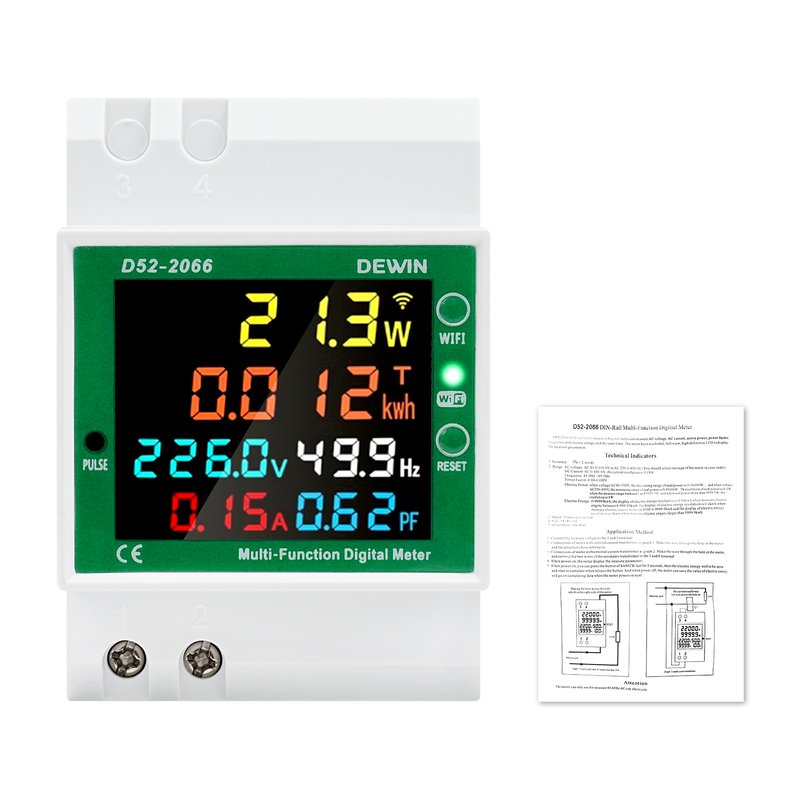

1*Rail type digital display measuring meter

1*Five country manual (side QR code)
