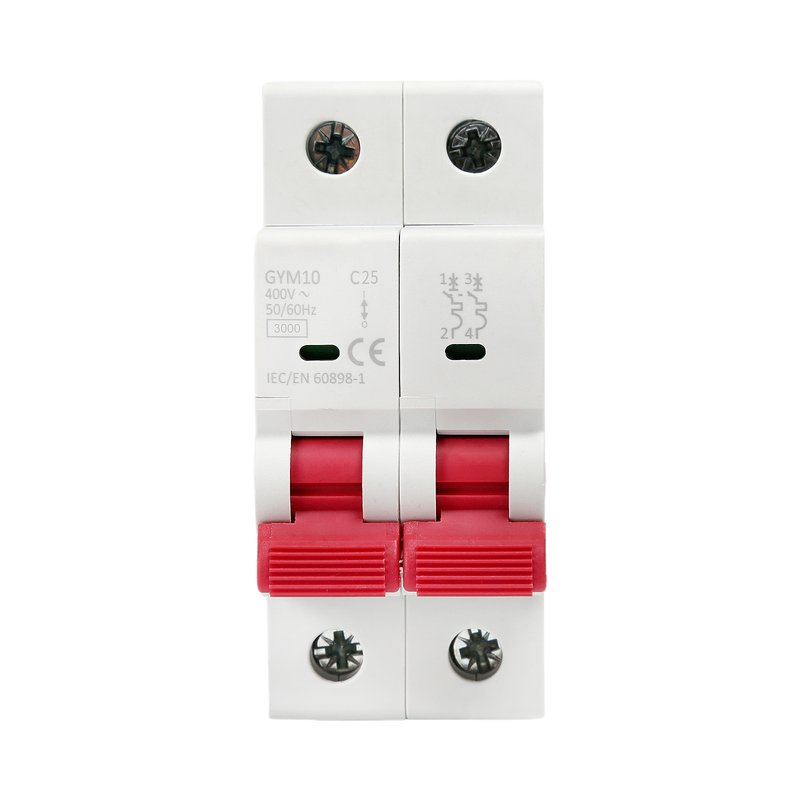

GYM10 MCB 400VAC C 2P 25A-3KA — Circuit Breaker (Red)

Features

1. Product features: GYM10 small circuit breaker is mainly used for overload and short-circuit protection of AC 50Hz/60Hz, rated voltage 230V/400V, and rated current 1A-63A. It can also be used for infrequent on and off switch operations under normal circumstances.

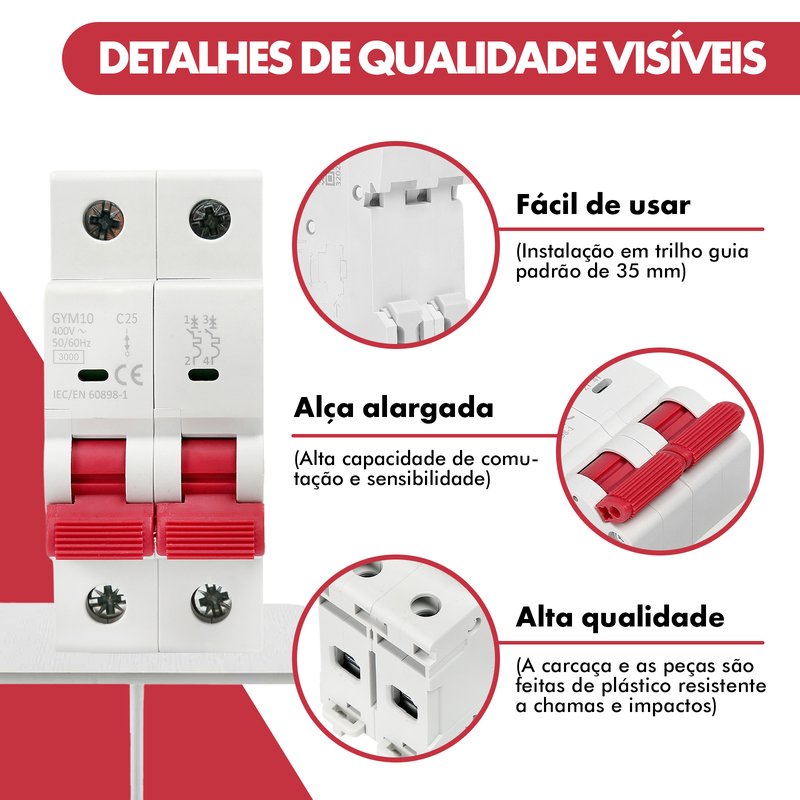

2. High quality: The shell and parts are made of flame-retardant and shock-resistant plastic and have a long service life. Final quenching treatment, environmentally friendly electroplating, good torsion resistance and anti-rust effect.

3. Instruction design: Window visualization to avoid misoperation. Green indicator light means disconnected, red indicator light means closed.

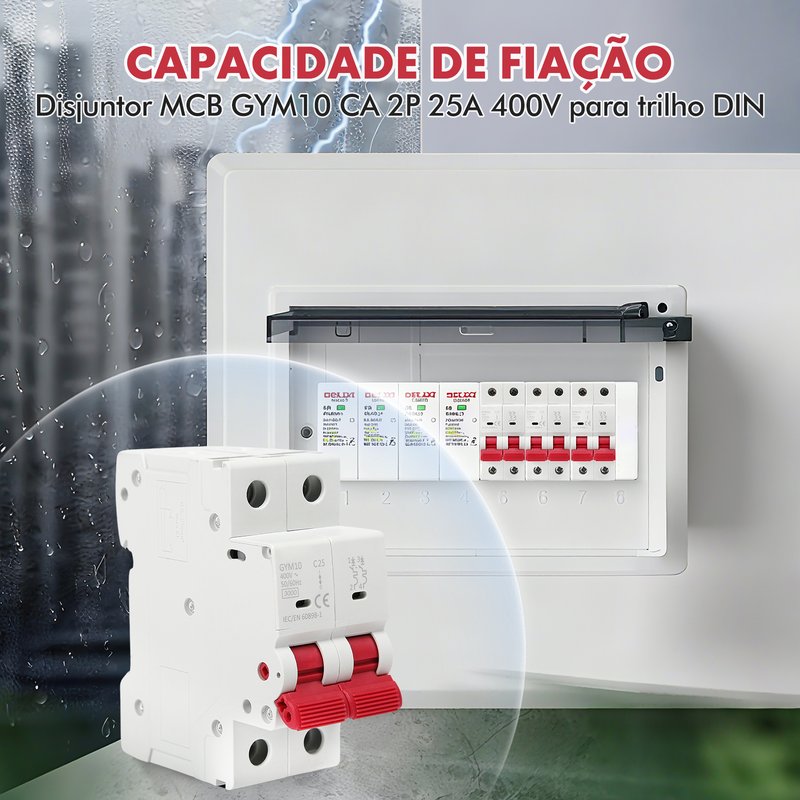

4. Wiring capacity: Maximum connection capacity 16mm², wiring torque 2.5N*m, suitable for a variety of installation equipment.

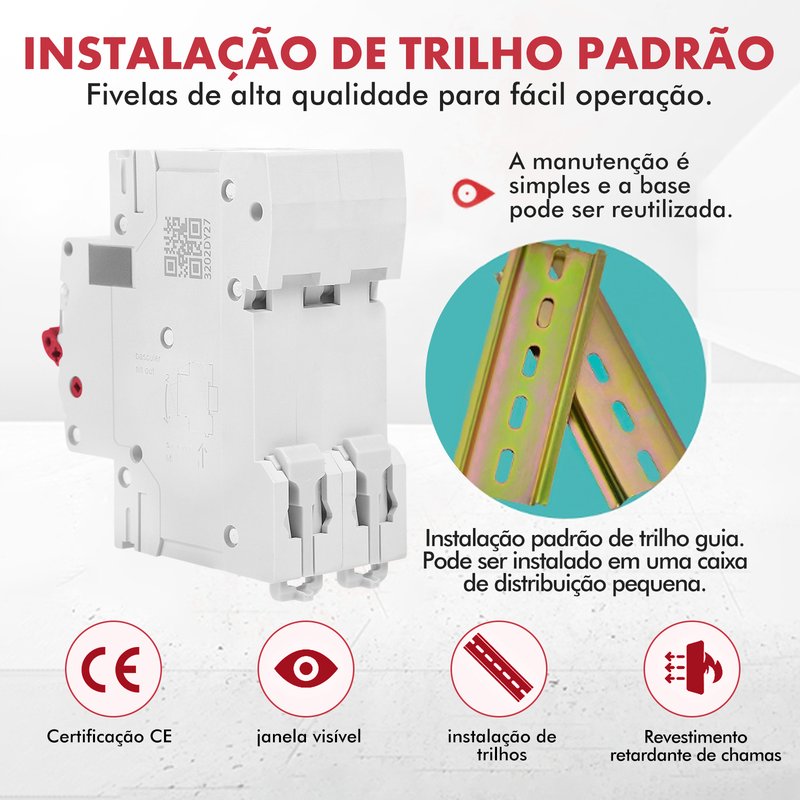

5. Easy to use: Standard 35mm guide rail installation, small size, light weight, reliable performance, high switching capacity and sensitive effect.

6. Wide application: Used for overload and short circuit protection. Double-side busbar wiring function, wider application range. Suitable for home lighting, heating, ventilation, roller blinds and other AC systems.

Specifications

Product name: AC miniature circuit breaker

Material: ABS

Type: 2P

Rated voltage: 400V AC

Rated current: 25A

Rated frequency: 50/60Hz

Rated breaking capacity: 3000A

Pollution level: 2

Thermomagnetic release characteristics: BCD

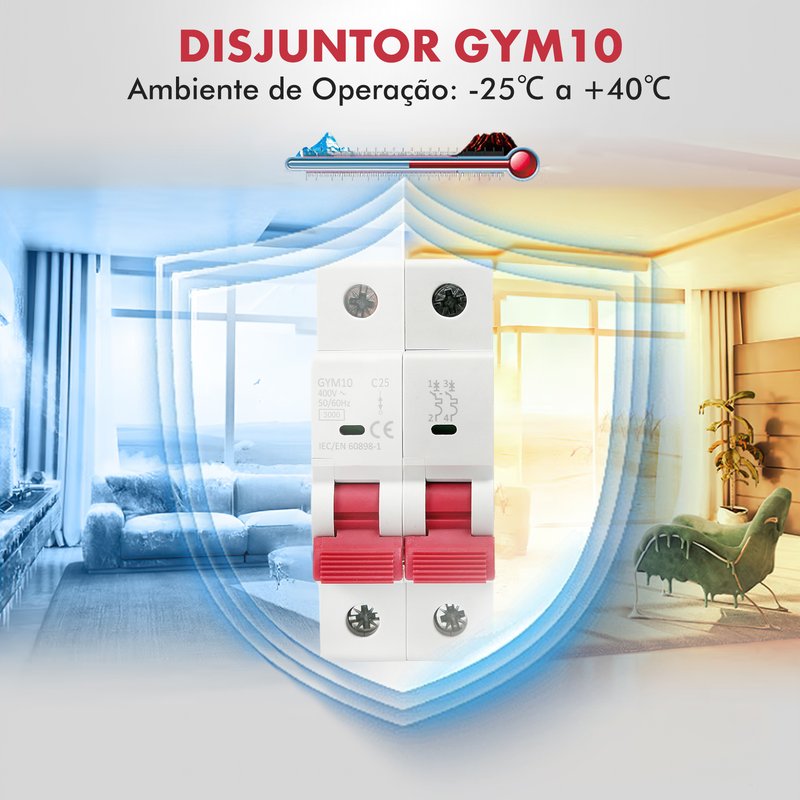

Working environment: -25 C+40 C

Electrical appliance life: 6000 times

Mechanical life: 10000 times

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*AC miniature circuit breaker
