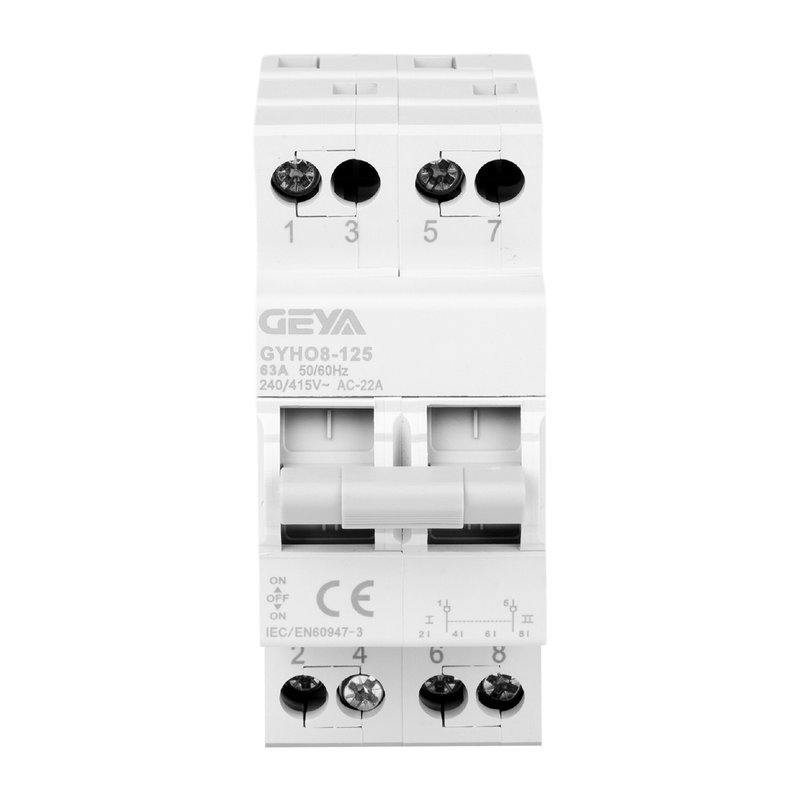

GEYA 2P 240AC 63A — Changeover Switch (Gray)

Features

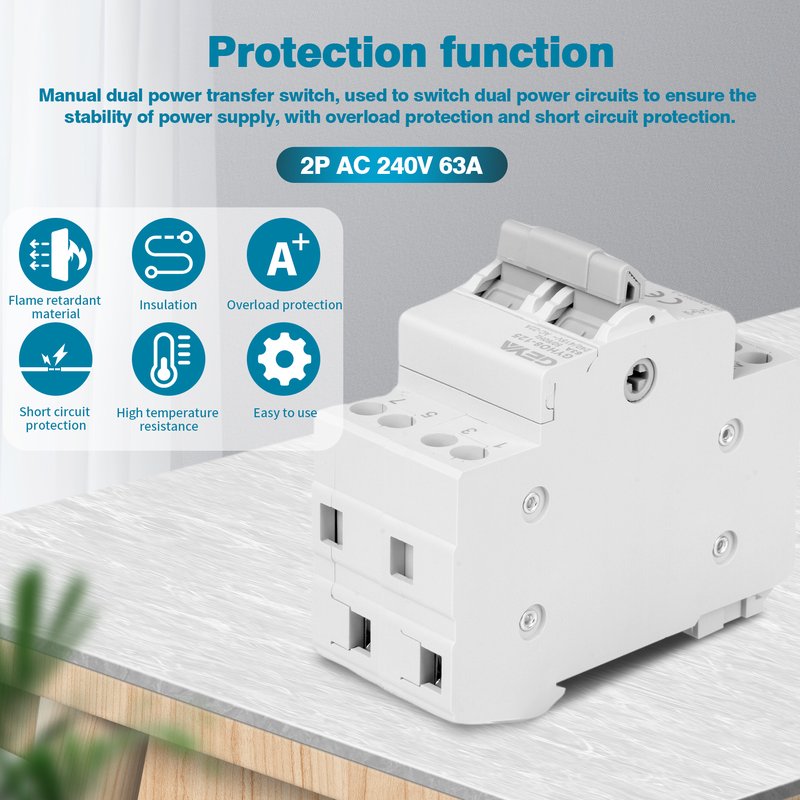

1. Protection function: Manual dual power transfer switch, used to switch dual power circuits to ensure the stability of power supply, with overload protection and short circuit protection.

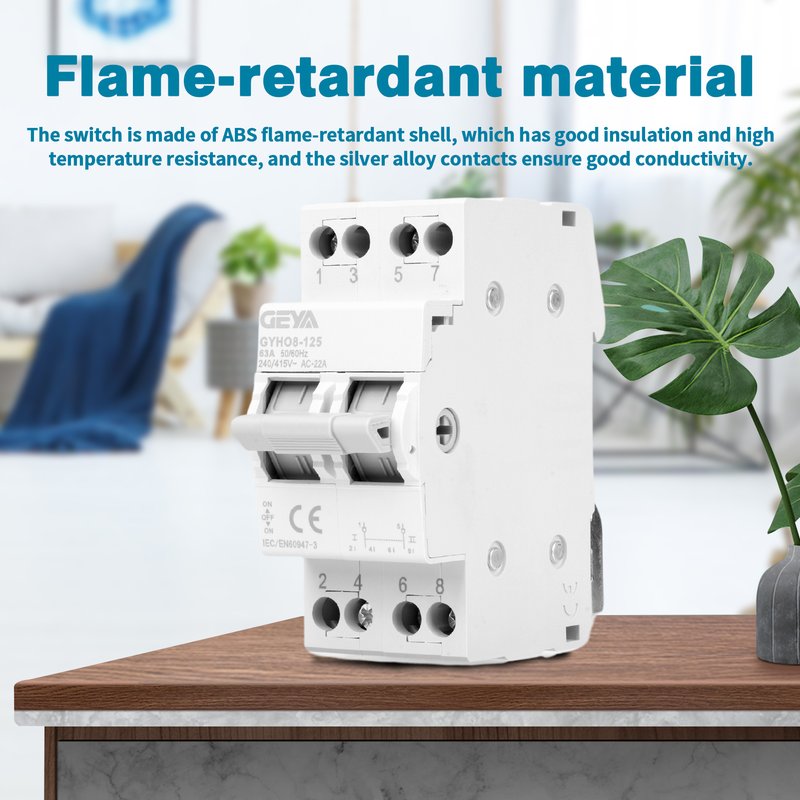

2. Flame-retardant material: The switch is made of ABS flame-retardant shell, which has good insulation and high temperature resistance, and the silver alloy contacts ensure good conductivity.

3. Panel instructions: It adopts humanized design, is simple and convenient to use, and is equipped with clear identification pictures to facilitate manual switching.

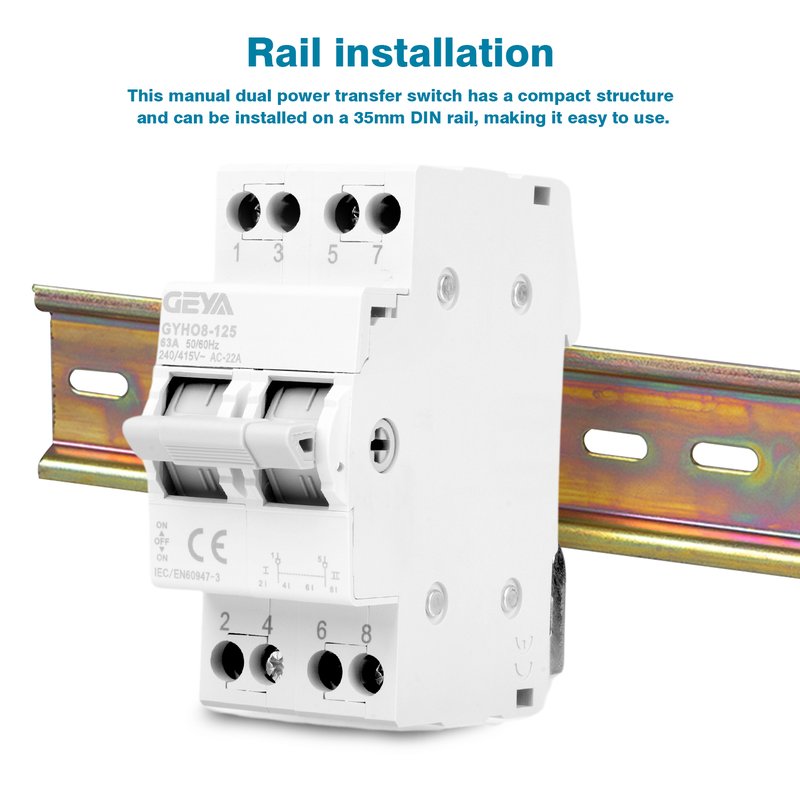

4. Rail installation: This manual dual power transfer switch has a compact structure and can be installed on a 35mm DIN rail, making it easy to use.

5. Application scenarios: This switch is suitable for commercial, residential, RV or other dual power systems and is a reliable energy management solution.

Specifications

Material: ABS flame retardant

Rated voltage: 240VAC

Current: 63A

Rated frequency: 50/60Hz

Number of poles: 2P

Electrical life: >1500 times

Mechanical life: >8500 times

Protection level: IP20

Ambient temperature: -5 C-40 C

Installation: 35mm DIN rail

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*Manual dual power transfer switch
