Main purpose:

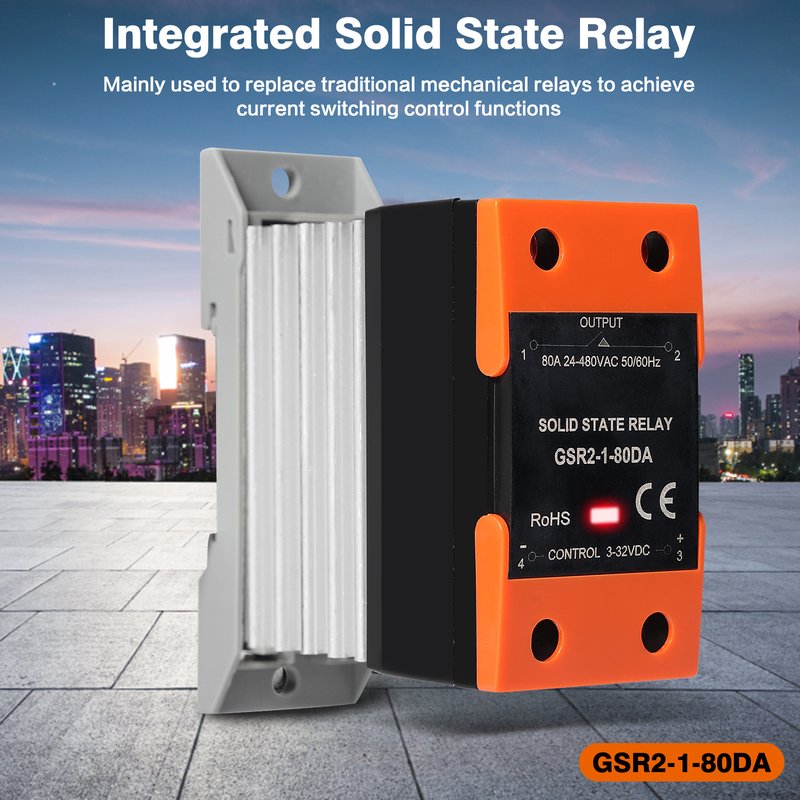

Integrated solid-state relays are mainly used to replace traditional mechanical relays to achieve current switching control functions. It is widely used in various industrial automation systems, power systems, construction equipment, communication equipment and other fields.

Features

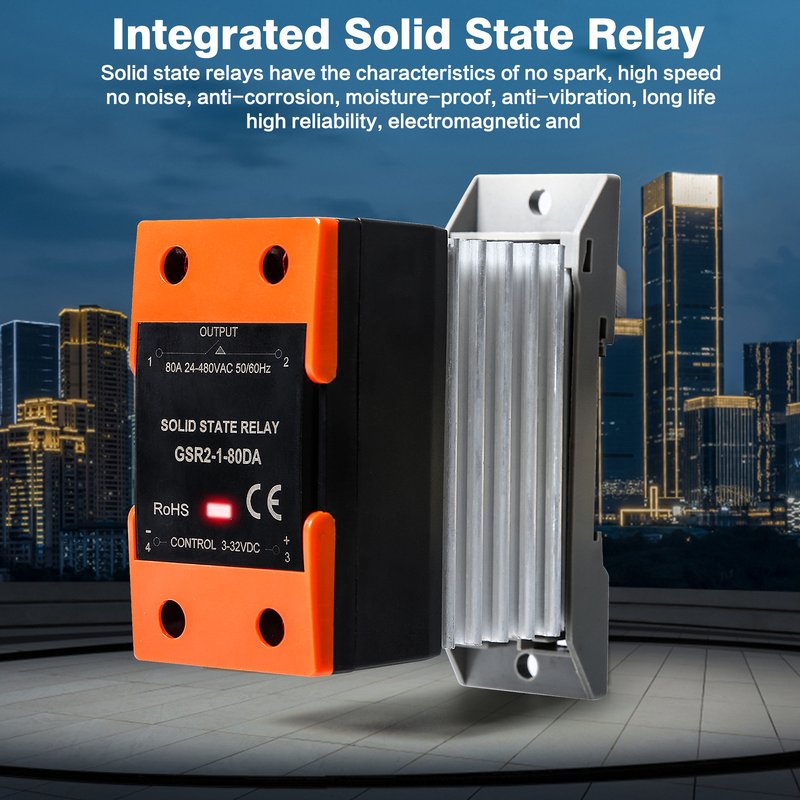

1. Multiple characteristics: Solid state relays have the characteristics of no spark in switching, high speed, no noise, anti-corrosion, moisture-proof, anti-vibration, long life, high reliability, electromagnetic compatibility, etc. At the same time, their output circuit resistance is low and the propagation speed is fast.

2. Comes with radiator: It uses aluminum alloy for high-strength heat dissipation, which greatly improves the heat dissipation effect and saves the tedious installation of your own radiator.

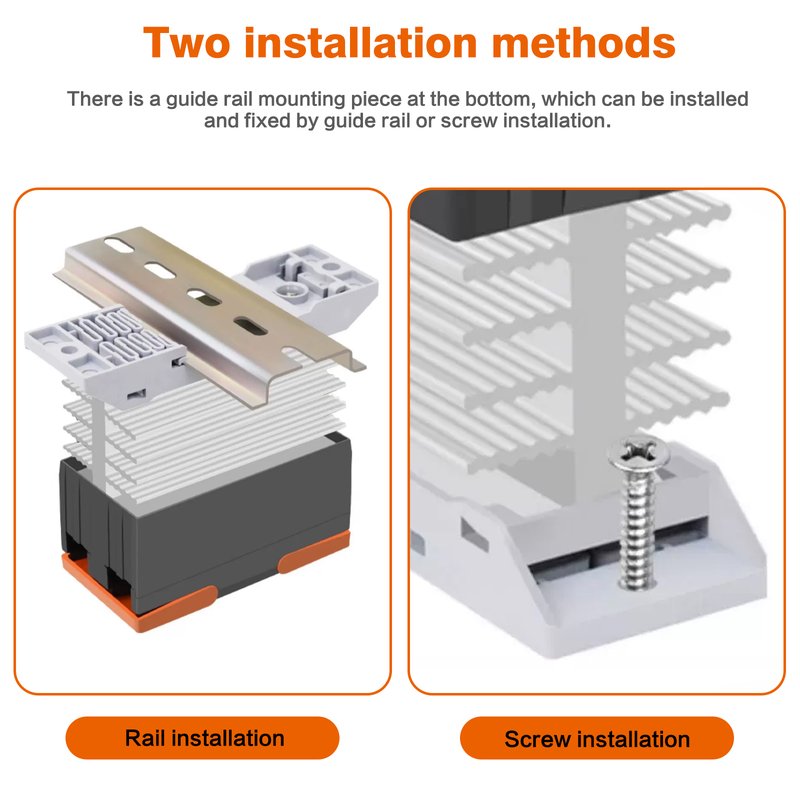

3. Two installation methods: There is a guide rail mounting piece on the bottom, which can be installed and fixed by guide rail or screw installation. Easy to install, compact, convenient and practical.

4. Wide application: Solid-state relays are widely used in microcomputer control, LED lighting, electric heating equipment, automatic curtains, automatic door switches, crane systems and other industries.

Specifications

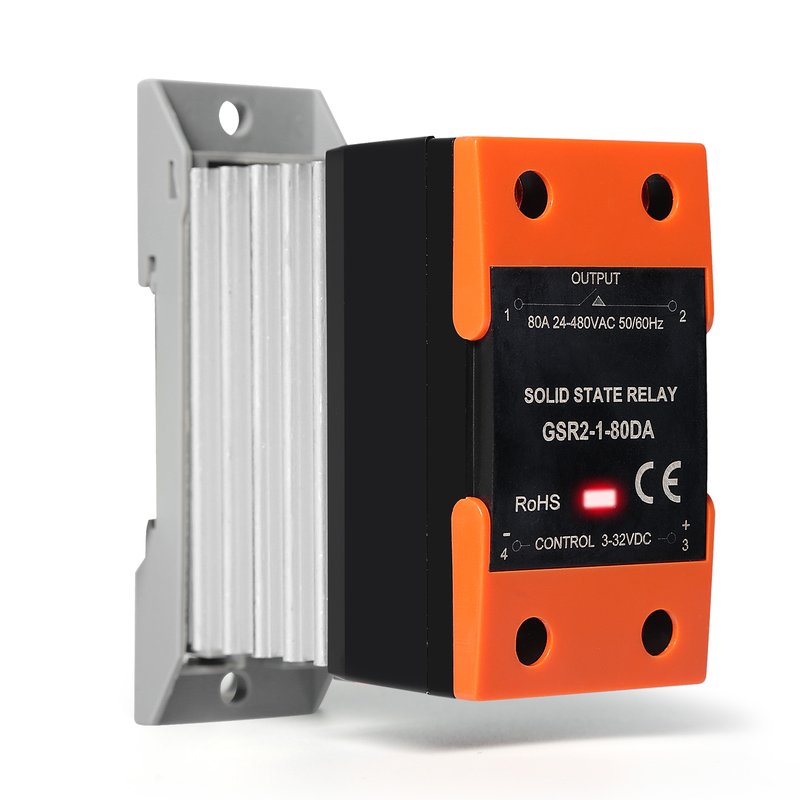

Product name: Integrated solid state relay

Material: PC flame retardant material

Input voltage: 3-32VDC

Minimum control current: 5mA

Maximum control current: 15mA

Output voltage range: 24-480VAC

Maximum load current: 80A

Peak voltage: 1200VAC

Insulation resistance: 1000MΩ/500VDC

Ambient temperature: -20°~75 C

Certification: CE certification

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3mm measuring deviation due to manual measurement.

Packing list

1*Integrated solid state relay
