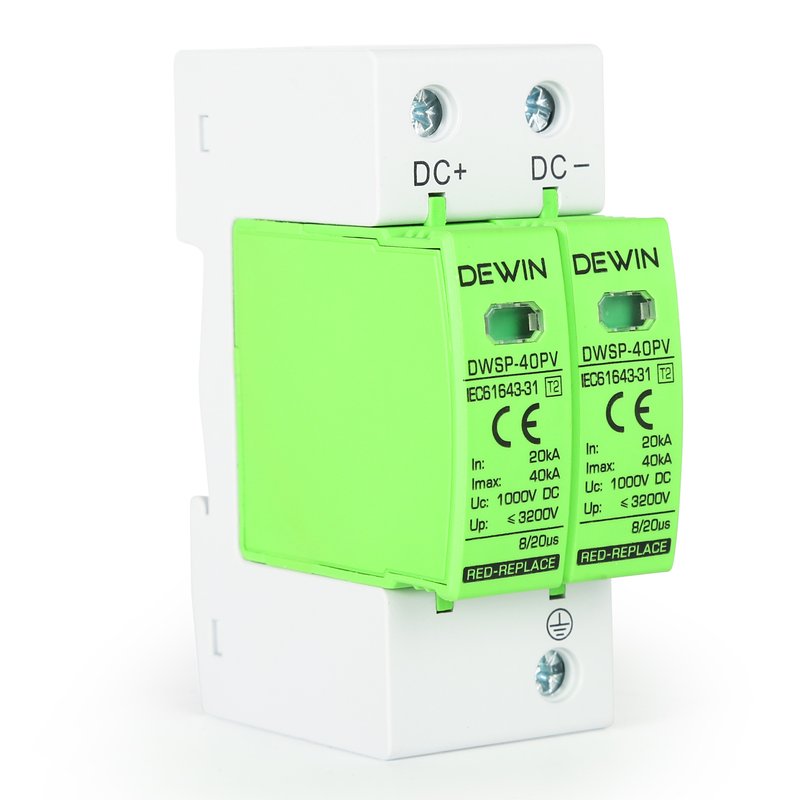

DEWIN 2P光伏直流 浪涌保护器 防雷器 圆形视窗口 灰绿色 英语说明书 DC1000V 40KA（货期7天左右）

以下技术资料为英文原文。

Features

Uses: Household surge protection devices are used for Class C and Class D lightning protection, lightning potential compensation, lightning quick response, and protection of electrical systems and household appliances from lightning and instant overvoltage.

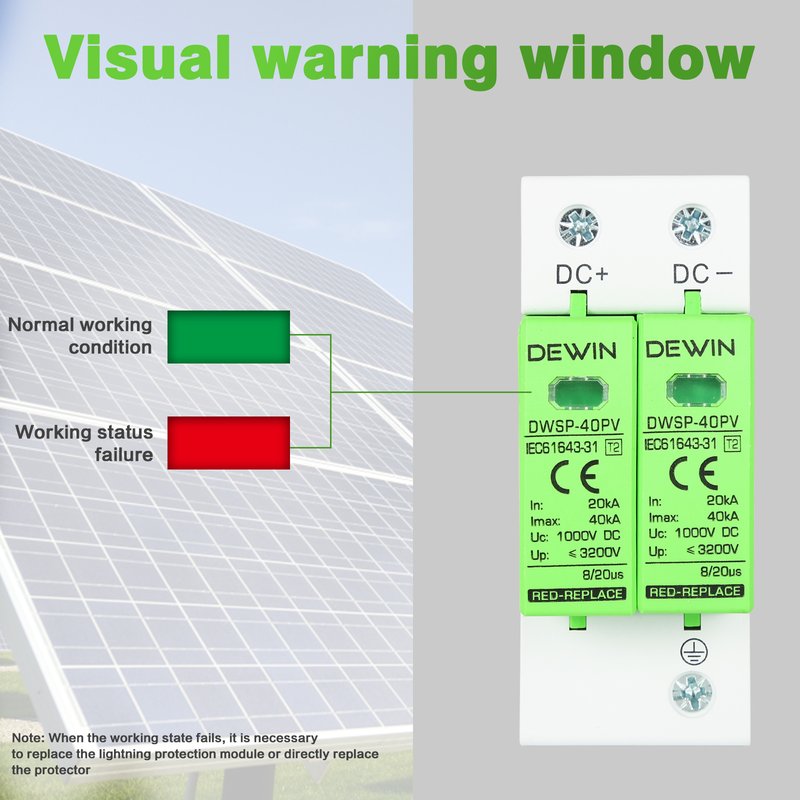

New design: new arc-shaped design, beautiful and generous; visual window, product status is clear at a glance (green is normal, red is faulty).

High quality material: The product connection terminal uses copper fittings with strong conductivity, and the shell is made of flame-retardant PC material, which is safe and secure.

Simple installation: designed with 35mm standard guide rail installation slots, suitable for various distribution boxes; the lightning protection parts of the surge protector are detachable and replaceable, easy to replace after damage.

Product parameters: household protection device; maximum continuous withstand voltage Uc: ~385V; nominal amplified current In: 20kA, maximum discharge current Imax: 40KA. The product complies with the IEC EN 61643-11 safety standard.

Specifications

Material: PC plastic + copper

Number of poles: 2P

Maximum continuous withstand voltage Uc: 1000V DC

Nominal amplified current In: 20KA

Maximum discharge current Imax: 40KA

Response time: <=20ns

Protection voltage Up: 3.2KV

Working temperature: -40 C-80 C

Applicable wire: 4-35mm²

Installation method: 35mm guide rail installation

Product function: lightning protection

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1 x Surge protector
