TwoTrees CNC雕刻机吸尘器适配775/500W主轴电机

以下技术资料为英文原文。

Features

1. With automatic start and stop function, LED light on the suction port is convenient for observing the material engraving effect at night, and the vacuum cleaner has a negative ion generator (air purification);

2. The vacuum cleaner motor adopts a brushless motor, which can run at a maximum speed of 50000 rpm, which can not only efficiently suck dust but also increase durability;

3. The vacuum cleaner adopts a transparent bottom shell, which is convenient for observing whether the dust bag is full;

4. The dust bag adopts a zipper type, which is convenient for users to pour out the debris and increase the reuse rate. The dust bag has a capacity of 2.8L;

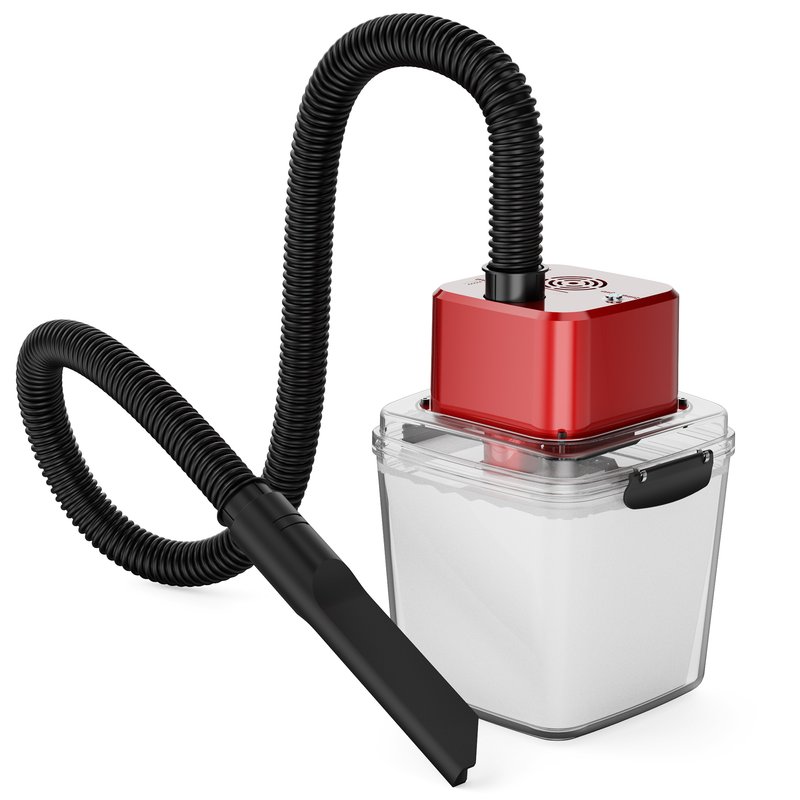

5. The kit is equipped with a flat and long vacuum port. When the machine is not in use, the vacuum cleaner can also be used as a household vacuum cleaner, which can easily clean the countertop.

6. The vacuum cleaner uses a filter cotton design inside to ensure that the exhaust gas does not contain dust after filtering;

7. The brushless motor has an overheat protection function. Once the motor temperature reaches the designed threshold, the motor will stop working until the temperature drops to a safe range before it can be restarted (requires restart);

8. After installing the dust collection port, the suction force is up to 6000Pa;

Specifications

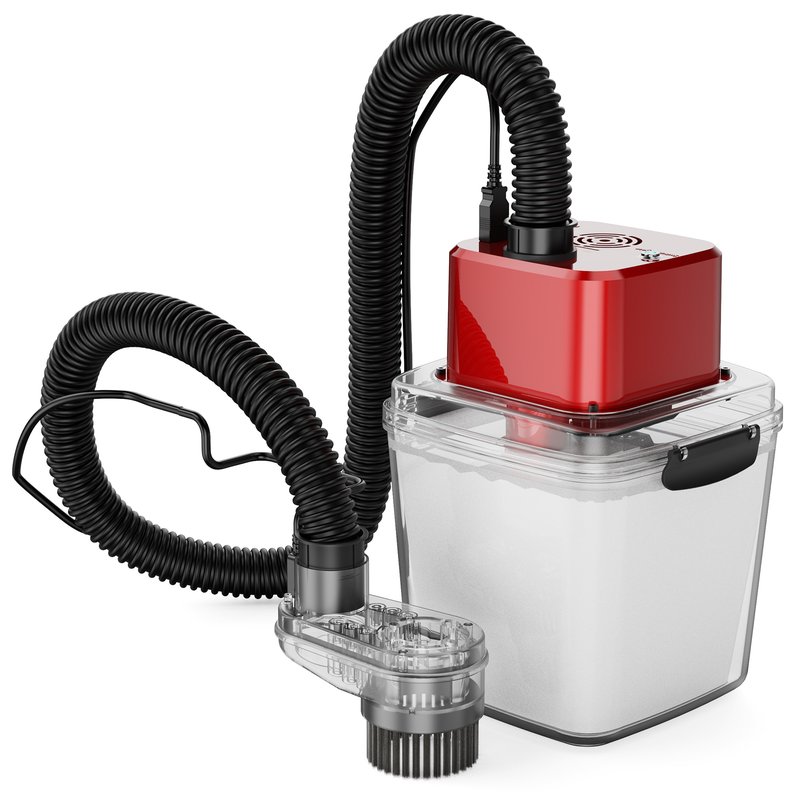

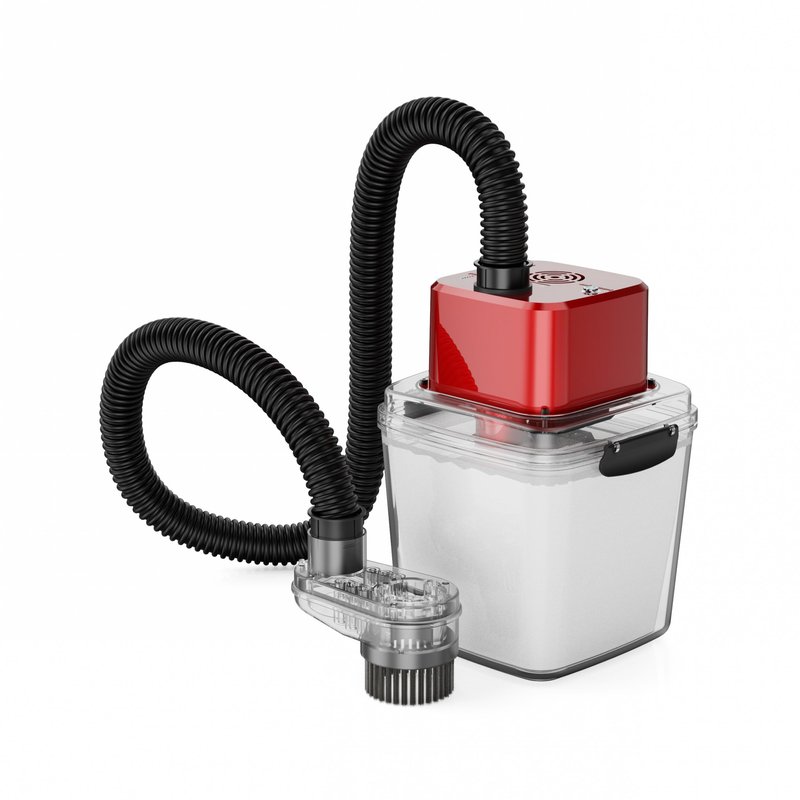

Name: CNC Vacuum Monster (M1) Kit

Model: Vacuum Monster (M1)

Molding Technology: CNC

Main Color: Transparent + High-gloss Wine Red

Main Material: Plastic

Shell Material: Plastic

Product Size: 170mm X 170mm X 240mm

Special Nozzle Type: Flat Long Head

Motor Type: Brushless Motor

Dust Storage Type: Zipper Dust Bag

Additional Functions: Automatic Start and Stop, LED Light, Negative Ion Generator (Air Purification)

Start Mode: Manual, Automatic Start and Stop

Gear Mode: 2 Gears

Bellows Length: 1.2mm (Diameter 32mm)

Endurance Working Time: 48 Hours

Product Net Weight: 1.4kg

Packaging Size: 302X240X290mm

Power Supply Mode: 24V 3A Power Adapter

Switch Power Supply Parameters: 100-240V 50/60Hz 1.5A(MAX) 24V 3A

Control Panel Input Voltage: 24V

Whole Machine Power Consumption: 70W

Standby Power Consumption: 1W

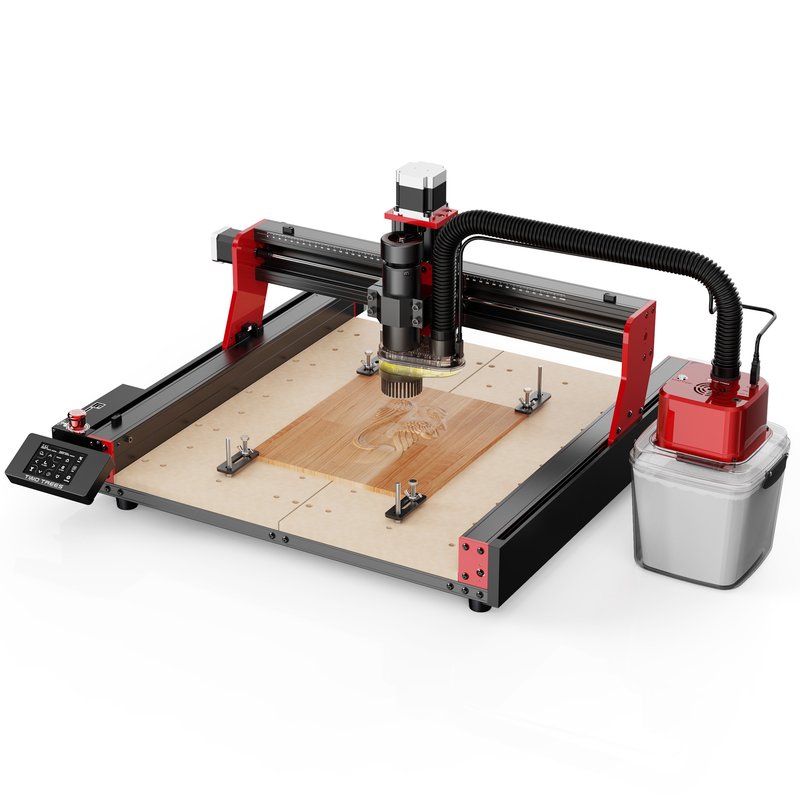

Compatible Machines: TTC450/TTC450 Pro

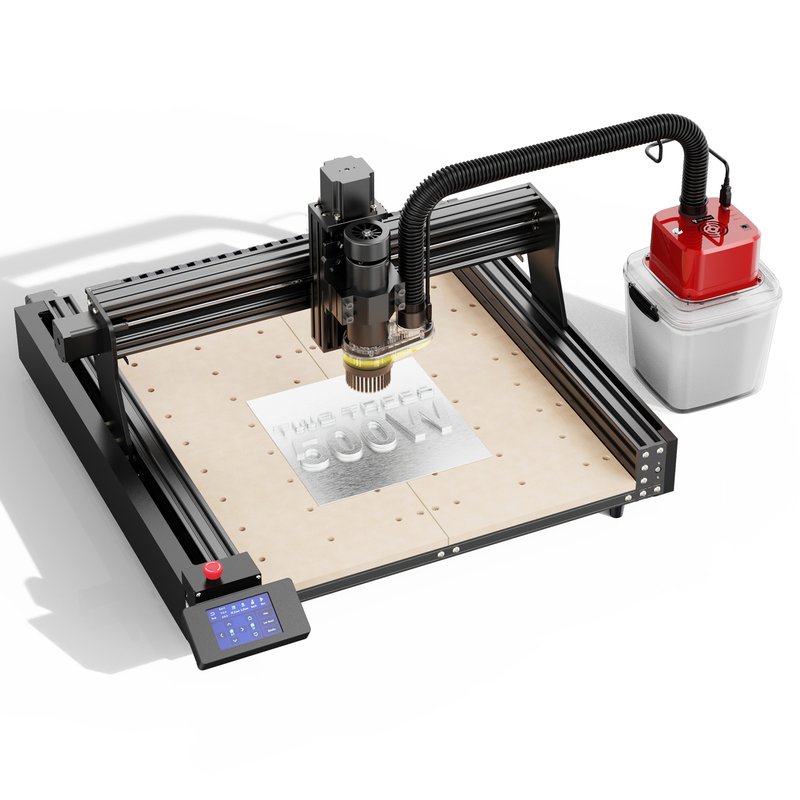

Applicable Spindle: 775 Motor/500W Spindle

Safety Certification CE/FCC/ROHS

Optimal Engraving Environment Temperature: 0°-40°

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1 x Vacuum Cleaner
