TwoTrees TTS-10 Pro激光雕刻机100-240V

以下技术资料为英文原文。

Features

1. New eye protection design: The laser protective box perfectly protects your eyes and filters 97% of ultraviolet rays.

2. Easy to assemble for beginners: 98% of the overall frame is packaged and shipped before installation, and assembly can usually be completed within 5-10 minutes.

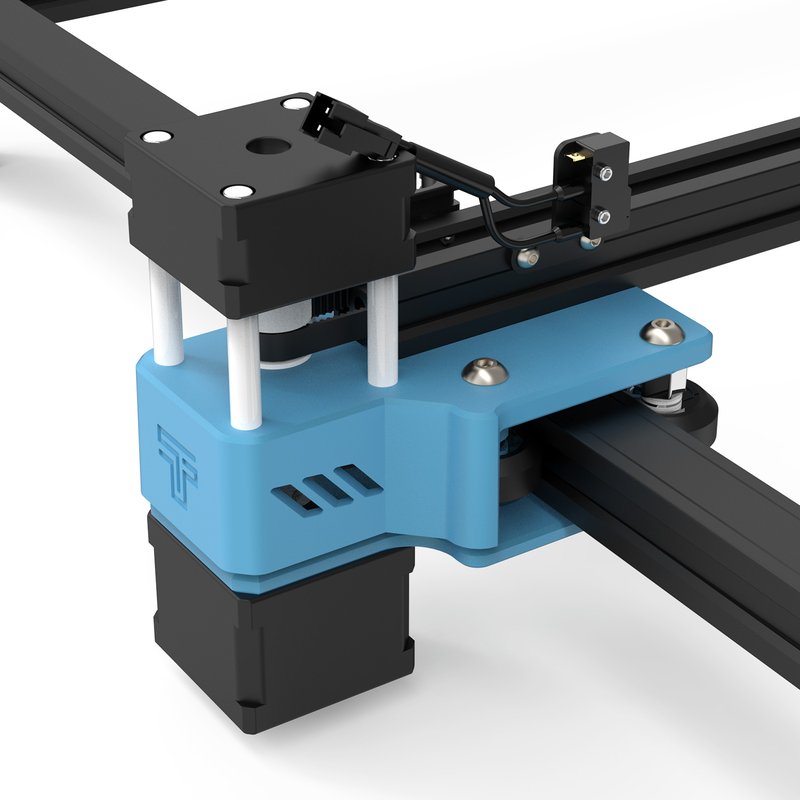

3. Laser module: Cos chip upgrade with more effective heat path, improved heat dissipation, lighter laser head and Y-axis dual motor design make the product have stronger engraving speed, up to 30000mm/min, that is, 500mm/s, which greatly improves engraving efficiency.

4. Limit switch: The limit switch ensures that the laser head can engrave safely and correctly.

5. Attached gift: In order to improve the user's engraving and cutting effect, we attached an air pump and honeycomb board to give you a better shopping experience.

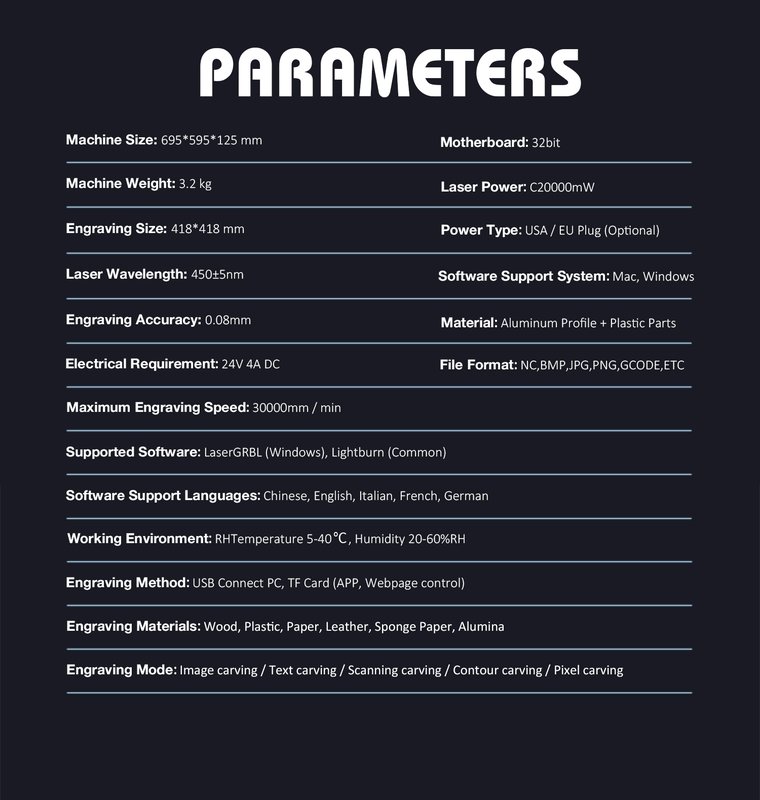

Specifications

Machine size: 695*595*125mm

Motherboard: 32-bit machine

Machine weight: 3.2kg

Packing weight: 3.5kg

Whole machine power: 130W

Laser electric power: 90W

Laser power: 10-12W

Engraving size: 300*300mm

Power type: EU plug

Laser wavelength: 450+/-5nm

Software support system: Mac, Windows

Engraving accuracy: 0.08mm

Material: aluminum profile + plastic parts

Power requirements: 24V 4A DC

File format: NC. For example. jpg png gcode etc.

Maximum engraving speed: 30000 mm/min

Supported software: Laser grbl (window), Lightburn (normal)

Software supports languages: English, Italian, French, German, Portuguese, Czech, Spanish, Russian, Polish and other 13 languages

Working environment: temperature 5-40 C, air humidity 20-60%RH

Engraving method: U disk connected to computer, TF card (APP, web page control)

Engraving materials: wood, plastic, paper, leather, sponge paper, aluminum

Engraving method: image engraving/text engraving/scan engraving/outline engraving/pixel engraving

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3mm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

1*Laser engraving machine
