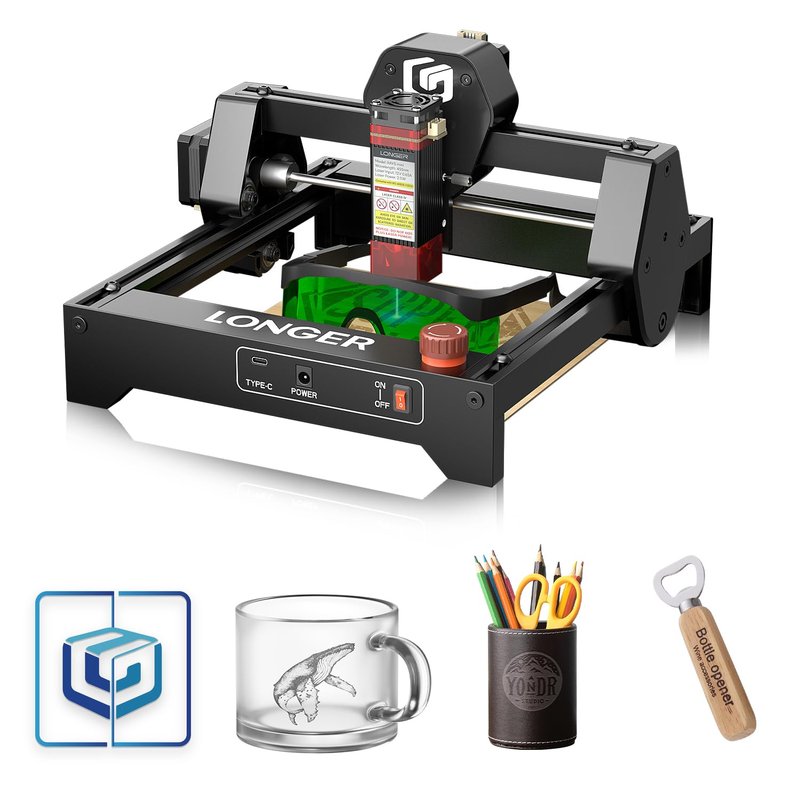

Longer RAY5 Mini 5.5w 12000mm/min 130 130mm — Engraving Machine

Features

High-Speed 5.5W Laser Engraving - Powered by a 32-bit motherboard with speeds up to 12000mm/min, 20% faster than similar models for smoother, more precise engraving and cutting.

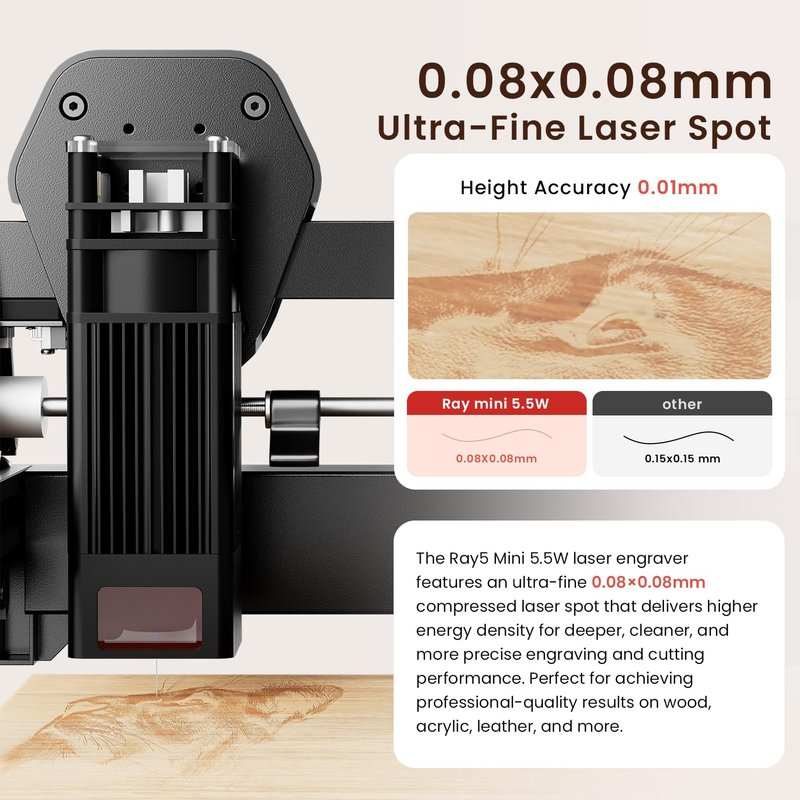

Ultra-Fine 0.08mm Compressed Spot - Advanced laser compression technology delivers detailed, high-contrast results on wood, acrylic, coated metal, leather, and more.

Compatible with LaserGRBL and LightBurn software.

One-Piece Pre-Assembled Design - Ships fully assembled so you can start engraving immediately; dovetail fixed-focus laser head enables quick height adjustment for different material thicknesses.

Enhanced Safety Features - Equipped with emergency stop, eye protection, and flame sensor; supports offline engraving for flexible, cable-free projects anytime, anywhere.

Specifications

Mainboard/Control Board: 32Bits

Engraving Speed: 12000mm/min

Software: LaserGRBL LightBurn LaserBurn

Engraving Area/Working Area: X*Y=130*130mm

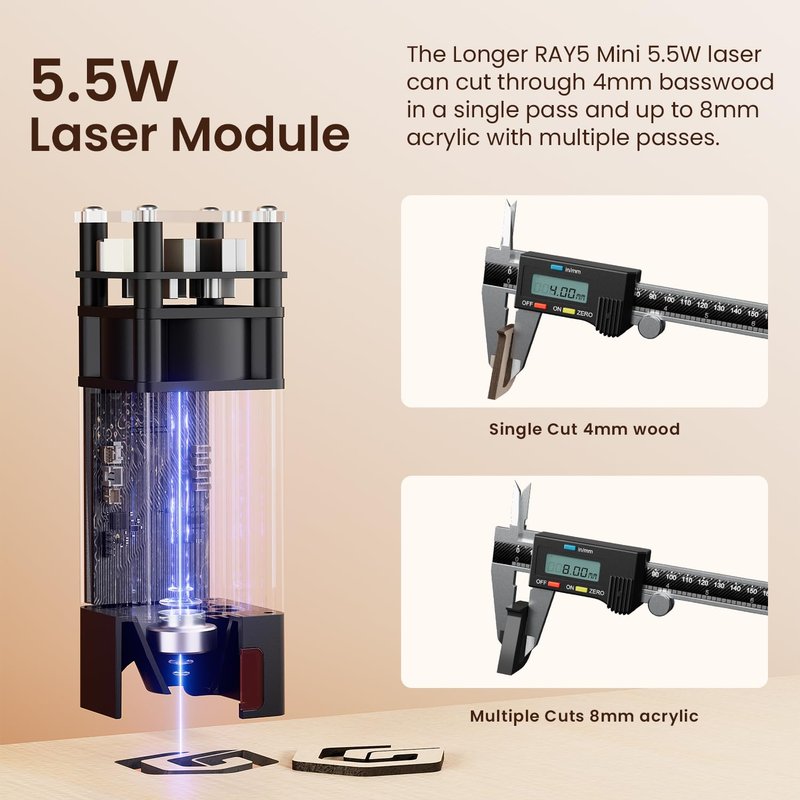

Laser Output Power: 5.5W

Safety Features: 1. Emergency Stop Button; 2. Eye Protection

Compressed Spot Technology: 0.08*0.08mm

Limit Switch: X and Y Axis Two Limit Switches

Net Weight: 1.71kg

Gross Weight: 2.6kg

Machine Dimensions: L*W*H=292*286*165MM

Package Dimensions: L*W*H=337*330*197MM

Offline Engraving: YES

Focus Adjustment: Dovetail Fixed Focus Post

Ease of Assembly: Shipped as an Integrated Machine

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

Instruction manual*1

Goggles*1

Power supply*1

Wrench*1

Brush*1

Focusing block*1

Connecting cable*1

Machine*1
