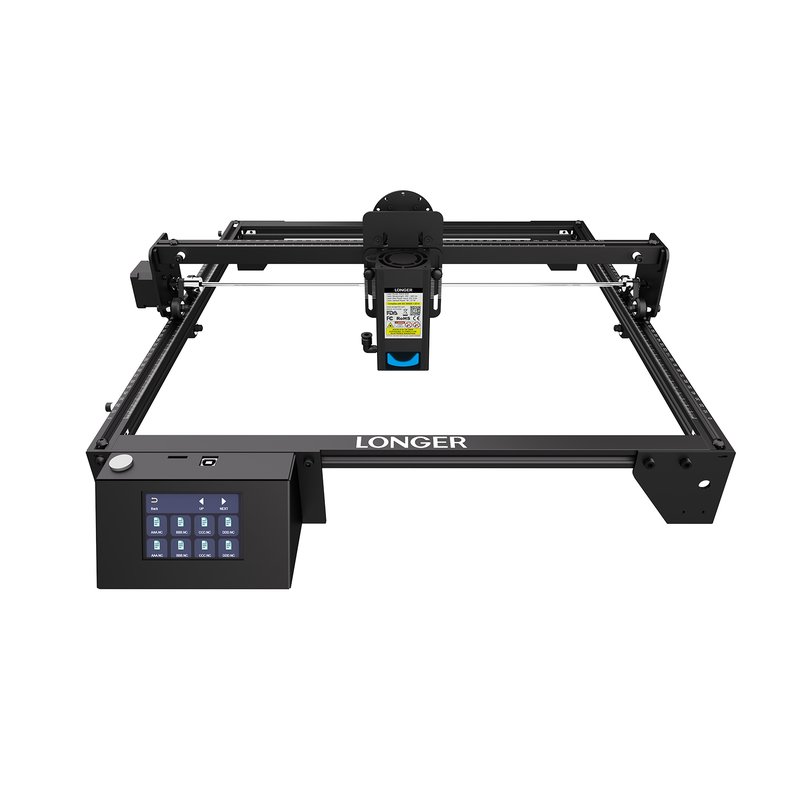

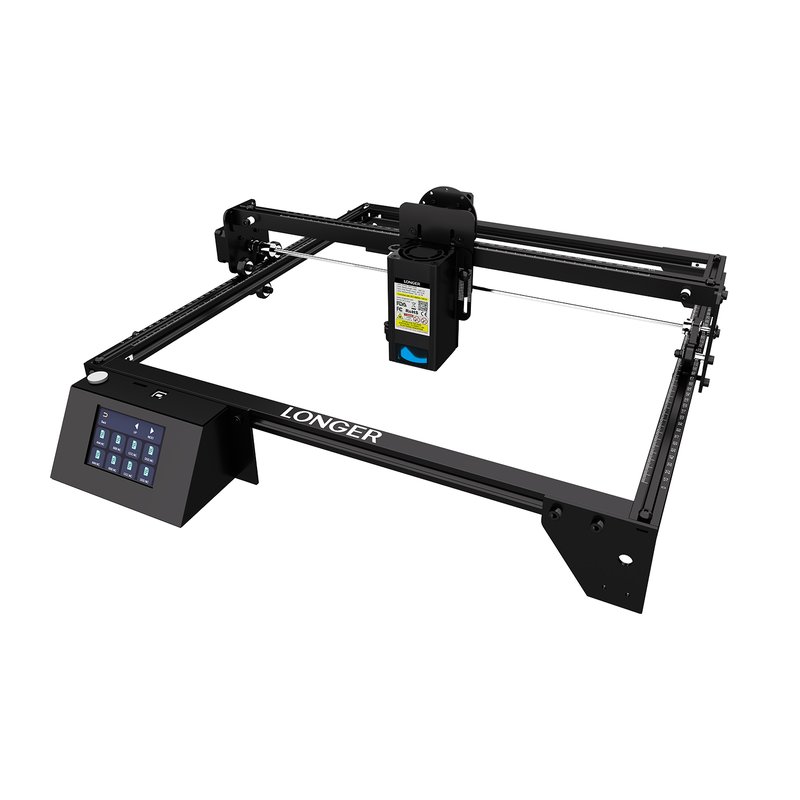

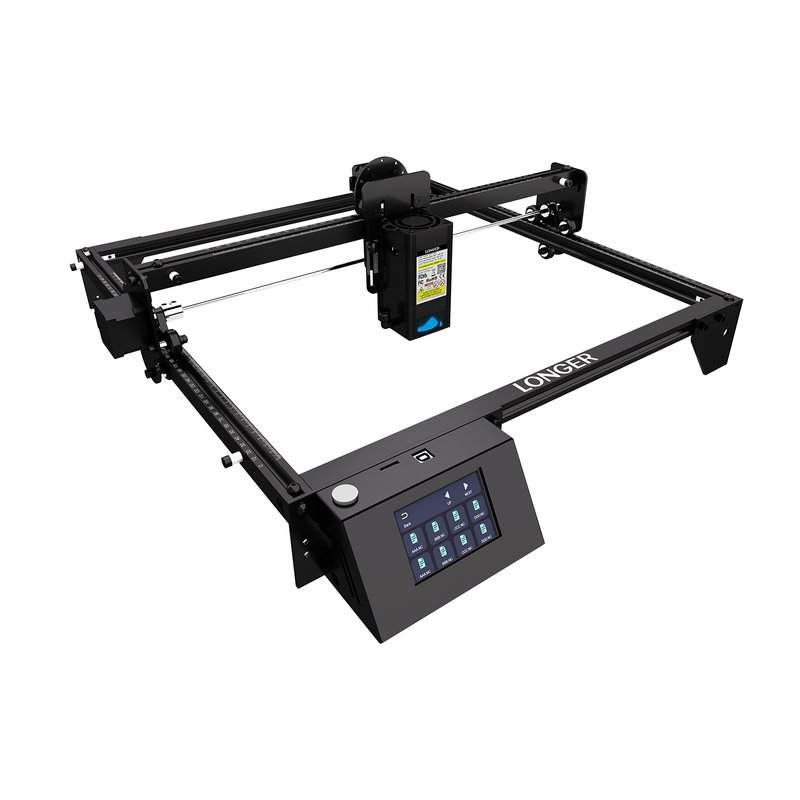

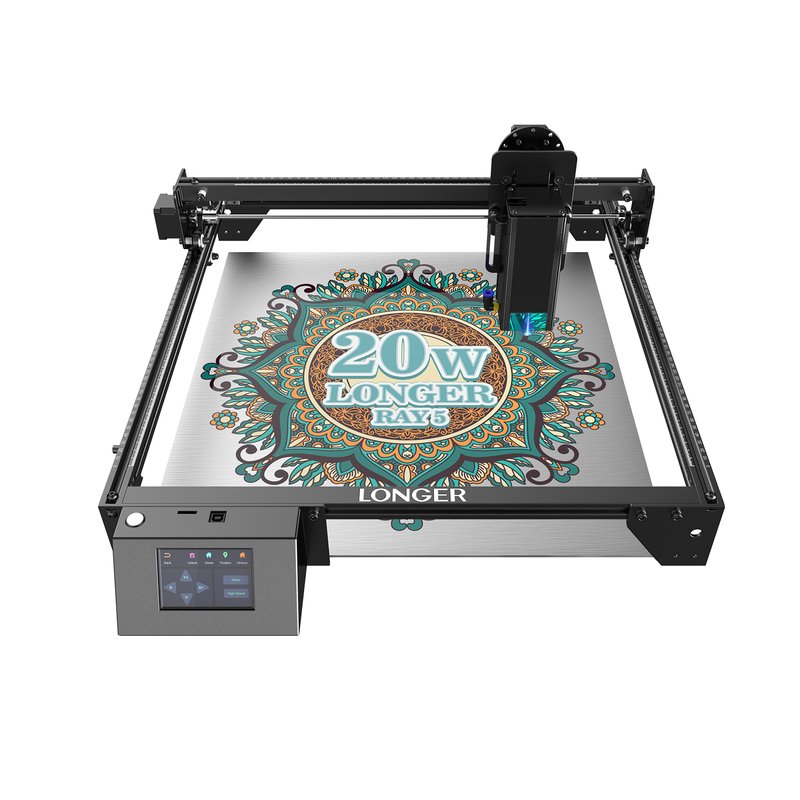

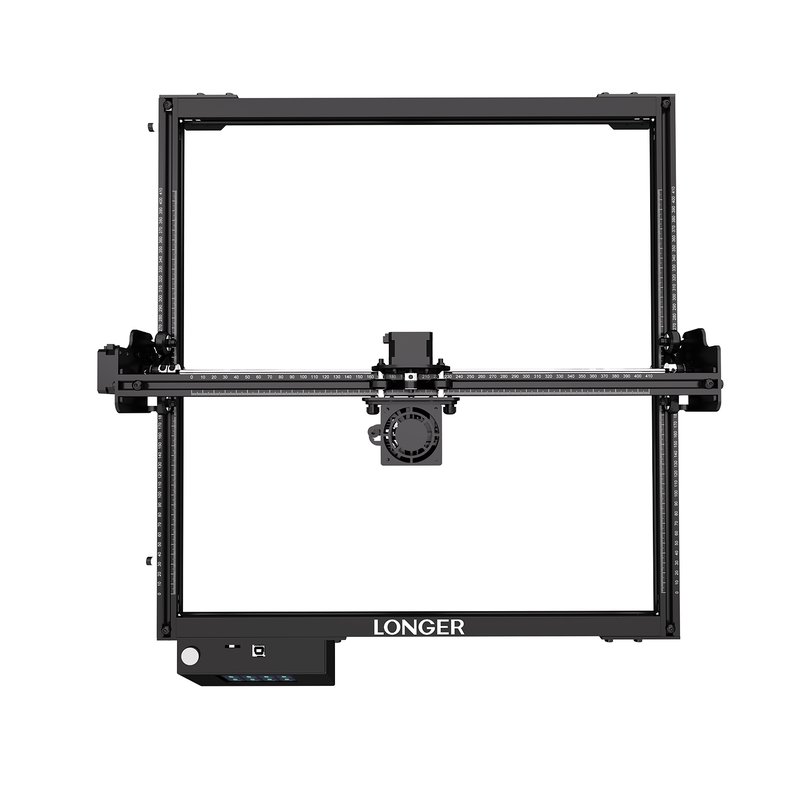

Longer RAY5 20w 3.5 — Engraving Machine

Features

High-power cutting capability: RAY5 20W long-axis laser engraving machine can achieve faster and more efficient engraving and cutting operations, saving time and cost for customers.

High-precision and fast engraving: RAY5 20W laser engraving machine is equipped with 0.08x0.1mm compressed beam laser head and precision guide rails, with a maximum processing speed of 10000mm/min, which can present delicate and precise engraving effects. Customers can create high-precision patterns, texts and subtle details.

Convenient operation and four connection modes: The machine body has a built-in 3.5-inch color touch screen, which is convenient for customers to monitor the engraving progress in real time, adjust the engraving speed and other operations. It supports four common connection methods: USB, TF card, WiFi, and APP, and is compatible with professional engraving software such as LaserGRBL and LightBurn.

Multi-material applicability: This laser engraving machine is suitable for processing a variety of materials: it can cut 25mm wood, 35mm acrylic, 0.002 inch / 0.05mm stainless steel, as well as leather, paper, glass, plastic, etc. Customers can use one device to complete the engraving and cutting of different materials, improving the flexibility of production and creation. (It is recommended to use it with an air pump for better engraving and cutting effects.)

Easy installation and reliable support: RAY5 20W laser engraving machine comes standard with a full set of tools, accessories and detailed installation and use guides. If you have any questions, the customer service team provides 7x24 hours of professional support and lifelong technical services.

Specifications

Model Number: Ray5 20W

Laser Technology: Diode Technology

Working Area: 375x375mm (14.76x14.76 inch)

Laser Wavelength: 450-460nm

Focal Length: Fixed Focus-40mm

Laser Spot Size: 0.08x0.10mm

Optical Output Power: 18-21W

Power Max Consumption: 120W

Engraver Output: DC24V 5A

Engraver Input: AC110-240V

Z Axis-Height Range: Up to 47mm

Fastest Working Speed: Speed 10000mm/min

Software: LaserGRBL&LightBum

Input Image Format: JPG, PNG, BMP, GIF, SVG, AI, etc.

Connection Type: USB/TF Card/WiFi

Limit Switch: Yes

Air Assist Interface: Yes

Laser Engraver Size: 610 x 67 x 200mm

Packaging Size: 621 x 347 x 127mm

Gross weight: 5.55Kg

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

Longer RAY5 20W Laser Engraver*1
