SCULPFUN (RA Pro Max 4 1) — Fixed Roller

Features

1. Multifunctional rotation module: SCULPFUN RA Pro Max is equipped with three sets of claws (trapezoidal claws, L-shaped claws, hexagonal claws). By changing accessories, it can carve more irregularly shaped objects, such as wine glasses, baseballs, baseball bats, glass cups, mugs with handles, etc. This makes your creative scope wider and meets the needs of more engraving projects. (Note: RA Pro does not provide a rotating roller)

2. 180° Adjustable angle: The roller is equipped with an adjustable angle claw plate, and the side is designed with angle markings for viewing the angle, which is convenient for use in different scenarios and can be flexibly positioned to meet different engraving needs and improve the engraving experience.

3. Simple and convenient, no installation required: No manual installation required, ready to use right out of the box. Plug and play, equipped with an adapter cable, just connect to the Y-axis stepper motor interface of the laser engraving machine and you can use it quickly.

4. Stable and durable metal structure: The entire claw plate is made of anodized aluminum alloy material, which has excellent corrosion resistance. The claws are made of high-strength brass to ensure firmness and reliability, and will not slip easily after long-term use. This metal structure design ensures the stability and durability of the roller.

5. Wide compatibility: The SCULPFUN roller comes with a tape measure and a spirit level, which facilitates you to measure the diameter and circumference of objects and ensures the levelness of engraved objects. In addition, SCULPFUN rollers are widely compatible with a variety of engraving software, such as LightBurn or LaserGRBL, and can be directly compatible with S6/S6 Pro/S9/S10/S30 series/S30 Ultra series/SF-A9, providing you with more choices and flexibility.

6. Multifunctional support bracket: SCULPFUN rollers are equipped with a multifunctional support bracket system. The tailstock uses a hand screw to firmly fix ball items. The double-wheel extension bracket (driven pulley assembly) has the function of adjustable height and three gear width selection, which is convenient for processing extra-long cylinders. This design makes support and adjustment easy and convenient, providing more processing options.

Specifications

Product model: RA Pro compatible machines: S6/S6 Pro/S9/S10/S30/S30 Ultra/SF-A9 (Note: Please confirm with us for other models)

Software: LightBurn/LaserGRBL (LB is recommended)

Engraving diameter range:

Ring diameter: 10-102mm

Sphere: 4-130mm

The fastest engraving speed: 6000mm/min

Engraving accuracy: 0.1mm

Rotation angle: 0-180°

Product size: 300*100*140mm

Product weight: 1.35KG

Packing size: 350*180*160mm

Packing weight: 2.2KG

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3cm measuring deviation due to manual measurement.

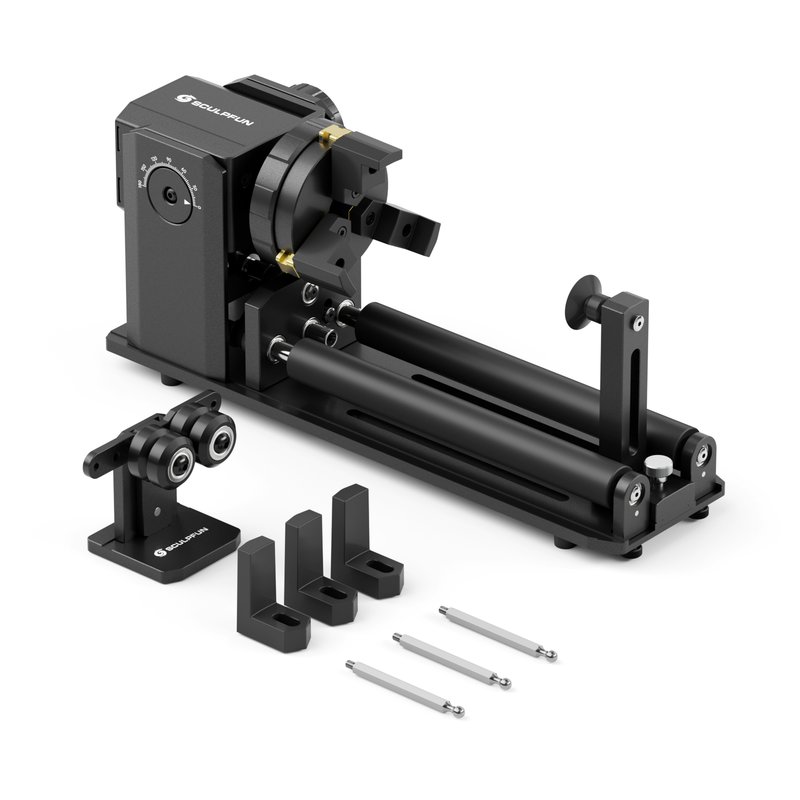

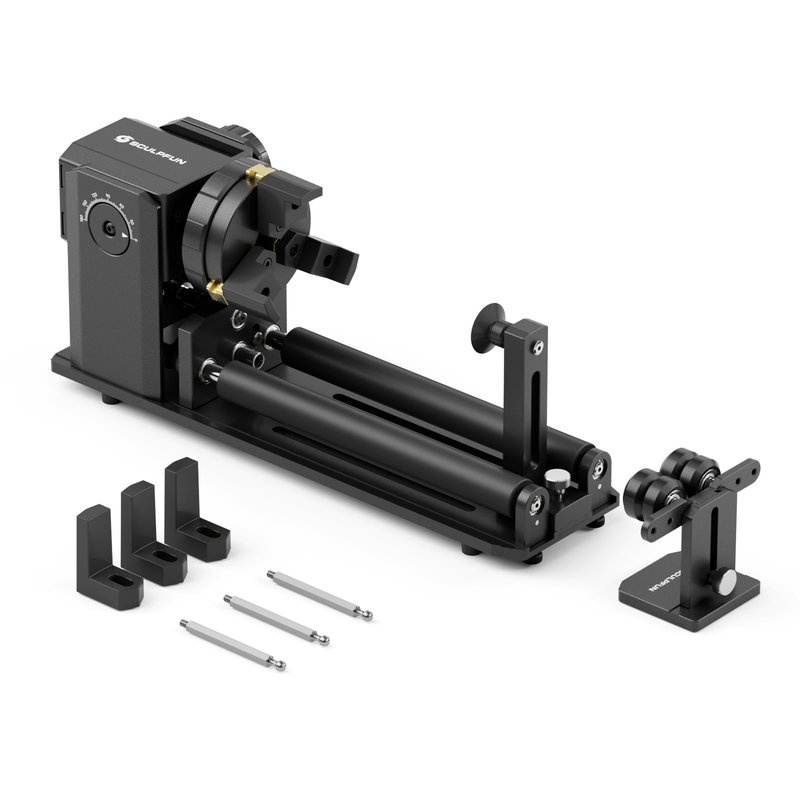

Packing List

1 x Complete machine (including rollers)

1 x Claw package assembly (claws*3)

1 x Trapezoidal claw

1 x L-shaped claw

1 x Hexagonal claw

1 x Wire+tape measure assembly

1 x Screw pack assembly

1 x Balance scale assembly

1 x Tailstock

1 x Double wheel bracket

4 x Machine height increase rack

1 x Instruction manual
