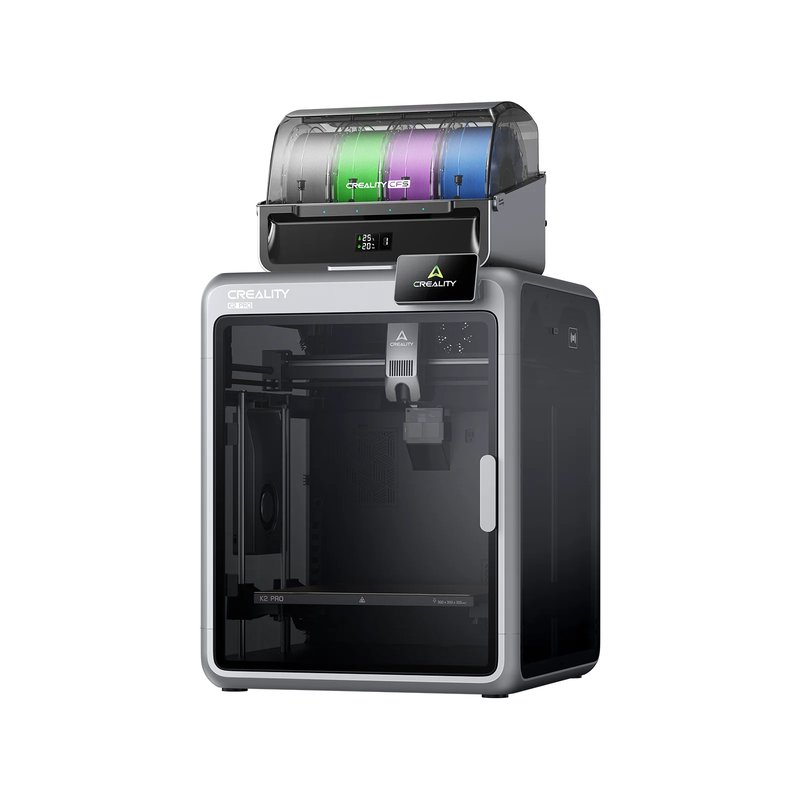

Creality K2 Pro Combo 3D CFS — Printer

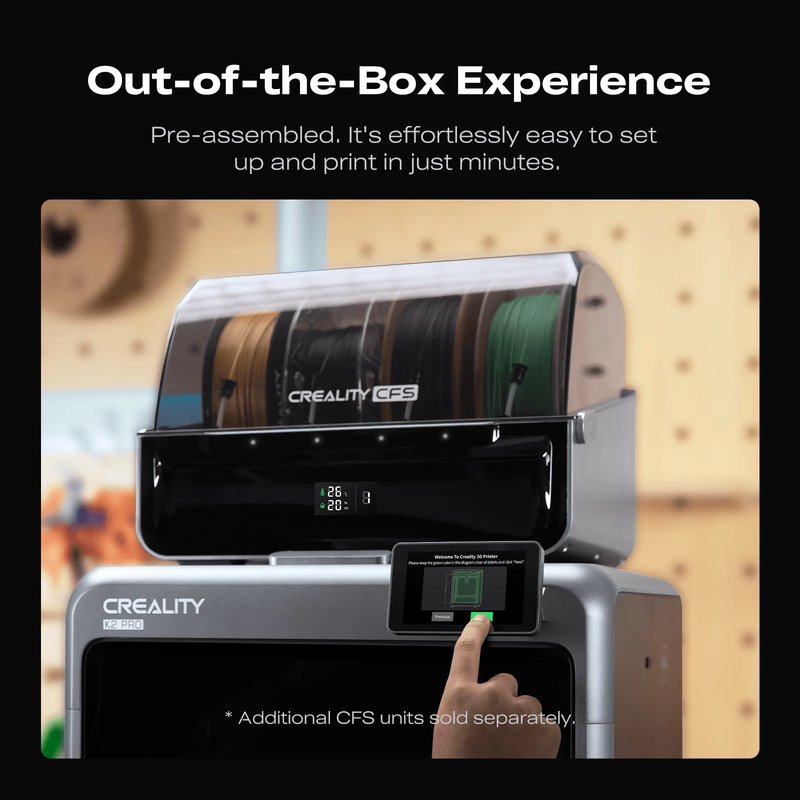

Intelligent filament management (CFS)

Automatically select, switch, and store filaments through the Creality intelligent filament system. Supporting reliable 18 color mixing simplifies multi material 3D printing for complex creative projects.

Professional grade 300mm ³ printing volume

The construction size of 300 x 300 x 300 millimeters is suitable for large models. Printing large designs or batch small parts without constantly adjusting dimensions is an ideal choice for prototyping, art, and production.

Three Steps - Servo Motor and Silent Performance

The servo motor on the X/Y/Z axis can achieve high-speed printing and ultra quiet operation at 600 millimeters per second. Balancing speed and accuracy, smooth and detailed printing effects can be achieved both day and night.

Active heating chamber and sturdy frame

A heating chamber at 50 ° C can handle high-temperature filaments such as ABS and ASA. The "matrix" frame made of aerospace grade alloy ensures stability, reduces vibration, and achieves perfect layer bonding.

Dual AI cameras and adaptive ink uniformity

Dual AI cameras monitor printing and detect faults or obstacles. The adaptive leveling function can quickly ensure perfect first layer printing. Enjoy stable and high-quality printing results without the need for manual labor.

Key parameters of K2 Pro

1, Basic parameters

Molding technology: Fused Deposition Modeling

Product model: K2 Pro

Printing size: 300 x 300 x 300mm

Body size: K2 Pro standalone 445 x 477 x 573mm; K2 Pro Combo 445 x 505 x 850mm

Net weight: 23.7kg

Rated voltage: 100-240V~AC 50/60Hz

Display screen: 4-inch color touch screen

Rated power: 1300W

2, Printing performance

Printing speed: <= 600 mm/s

Acceleration: <= 20000 mm/s ²

Printing accuracy: 100 +/- 0.1mm

Printing layer thickness: 0.05-0.3mm

Extruder: Double gear direct drive extruder

Consumable diameter: 1.75mm

Nozzle diameter: 0.4mm

Nozzle temperature: <= 300 C

Hot bed temperature: <= 110 C

Chamber temperature: <= 60 C

Printing Platform: Flexible PEI Printing Platform

Leveling method: fully automatic leveling

XYE motor: X/Y axis and extruder stepper servo motor

3, Functional characteristics

File transfer: USB flash drive/Ethernet/WiFi

File storage: 32GB EMMC

Supporting consumables: PLA/ABS/PET/PA - CF/PLA - CF/PET/ASA/PA - CF

Printer RFID sensor: standard configuration

AI camera monitoring: standard configuration

AI Camera Calibration: Standard Configuration

Power off continuation: supported

Automatic refueling: supported

Consumables wrapping detection: support

Air purification: support

Input plastic surgery: supported

Lighting Kit: Supports

Active chamber heating: Supports

RFID tag consumables: support

Printable file format: G-code/3MF

CFS compatibility: Supports

CFS expansion quantity: <= 4

Slicing software: Creality Print 6.0 and above versions

Operating languages: English/German/Spanish/French/Italian/Portuguese/Russian/Turkish/Japanese/Korean/Chinese

4, Packaging information

K2 Pro packaging size: 608 x 590 x 635mm

K2 Pro gross weight: 32kg

K2 Pro Combo packaging size: 608 x 590 x 635mm

K2 Pro Combo gross weight: 37kg

CFS key parameters

1, Basic parameters

Product model: CFS

Size: 379 x 314 x 276mm

Net weight: 4.56kg

Number of silos: 4

Drying method: desiccant

Consumables buffer: 4 in and 1 out

Support for expansion quantity: <= 4

RFID consumables identification: supports

Consumable diameter: 1.75 +/- 0.05mm

Connection port: Creality 485 interface x 2

Power supply: DC 24V (no additional power supply required when connected to K2 Pro)

Rated power: 20W

Status indicator light: white/red indicator light x 4

Display screen: segment code screen, displaying temperature and humidity

Compatibility of consumables roll: Suitable for 1kg roll, roll diameter 197-202mm, width 42-68mm

Supporting consumables types: PLA/PET/ABS/ASA/PET/PLA CF (incompatible with flexible TPU, moisture affected PVA/BVOH, fragile consumables, and corrugated paper rolls)

Automatic material replenishment: supported

2, Packaging information

CFS packaging size: 438 x 365 x 330mm

CFS gross weight: 5.8kg

Packaging & Logistics

Pieces per carton	1
Carton dimensions (L×W×H)	60 × 62 × 55 cm
Carton weight	37 kg
