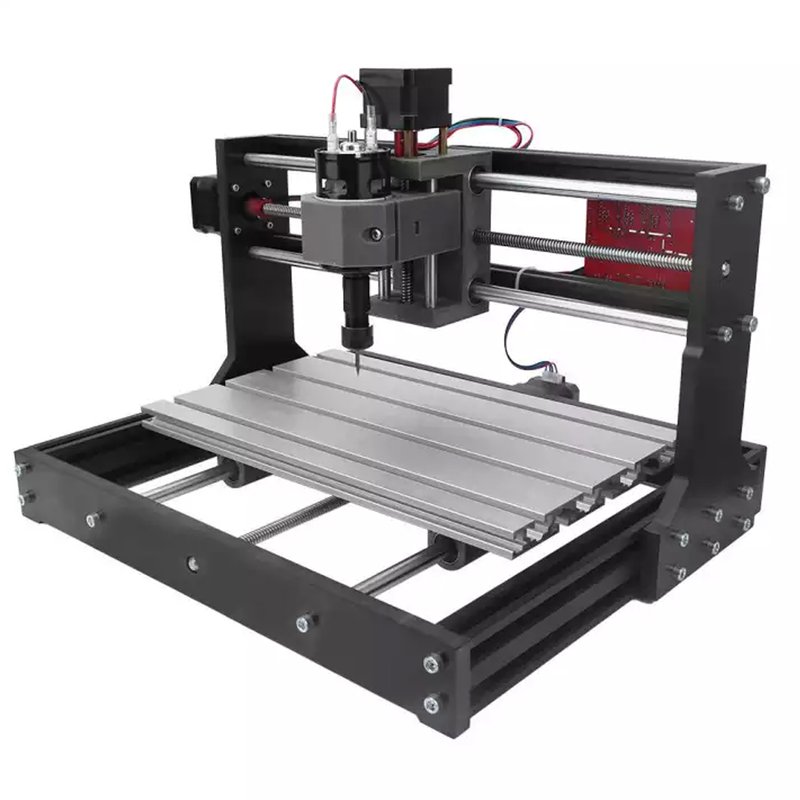

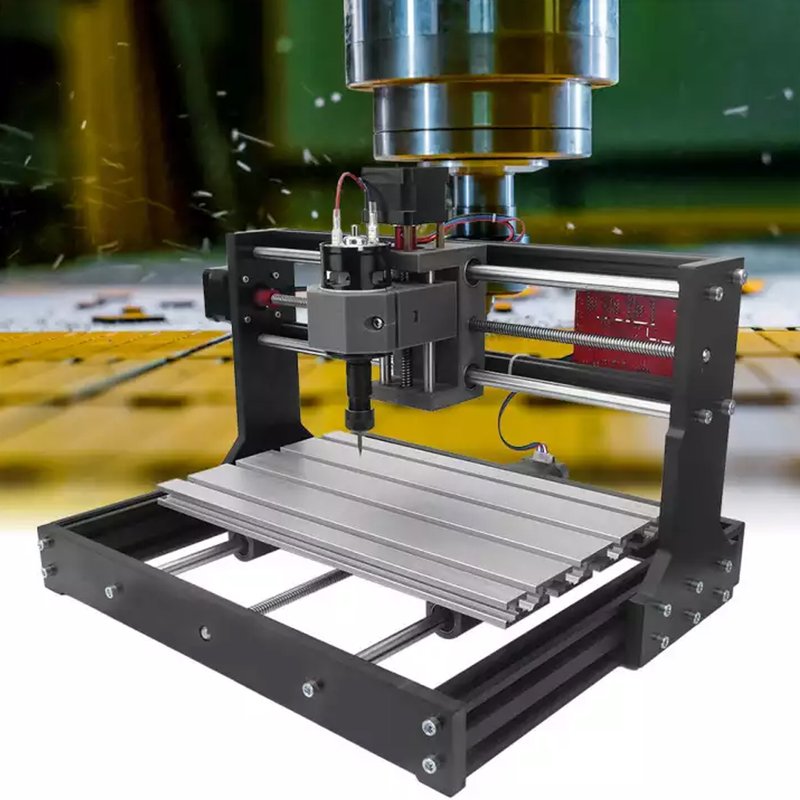

TwoTrees CNC3018 DIY — Engraving Machine

Features

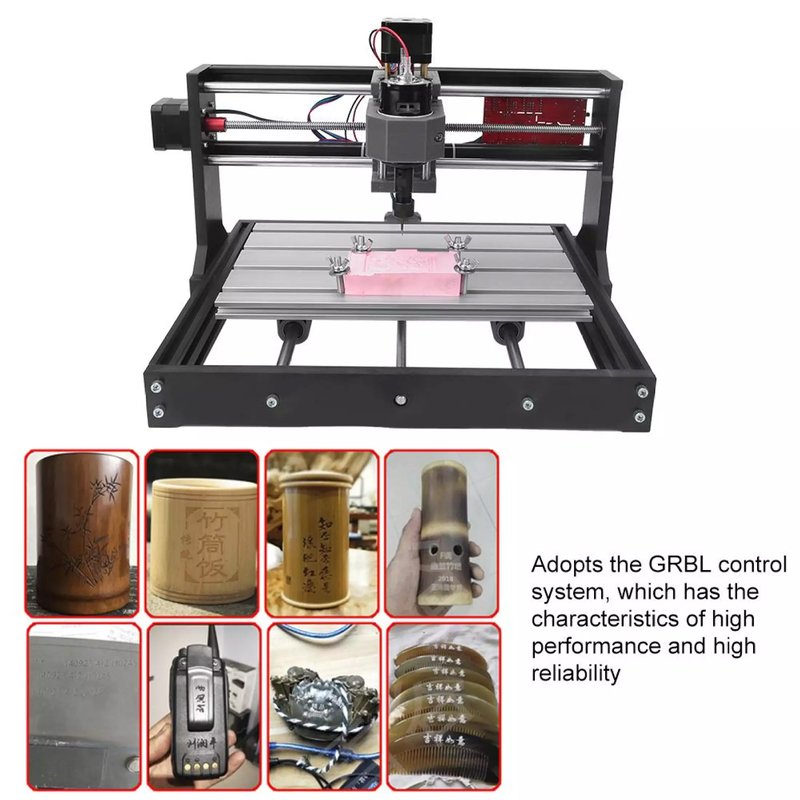

1. The engraving machine adopts GRBL control system, which has the characteristics of high performance and high stability.

2. The printing motherboard is efficient, stable and easy to maintain.

3. The engraving head of the engraving machine can use a cutting machine or laser engraving head, and the engraving head/cutting head can be replaced.

4. In addition to providing instructions, operation videos are also uploaded to the YouTube website for better use of the engraving machine.

5. This product can provide English operating software, allowing you to easily perform engraving operations for any DIY.

6. There are 3 guide rails in each moving direction, providing better stability and improving engraving accuracy.

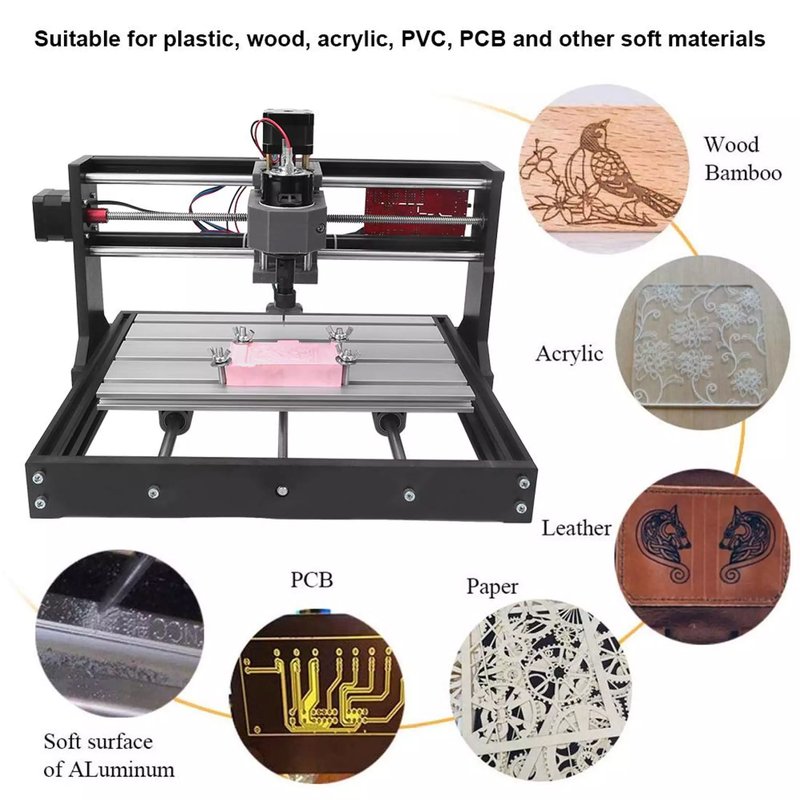

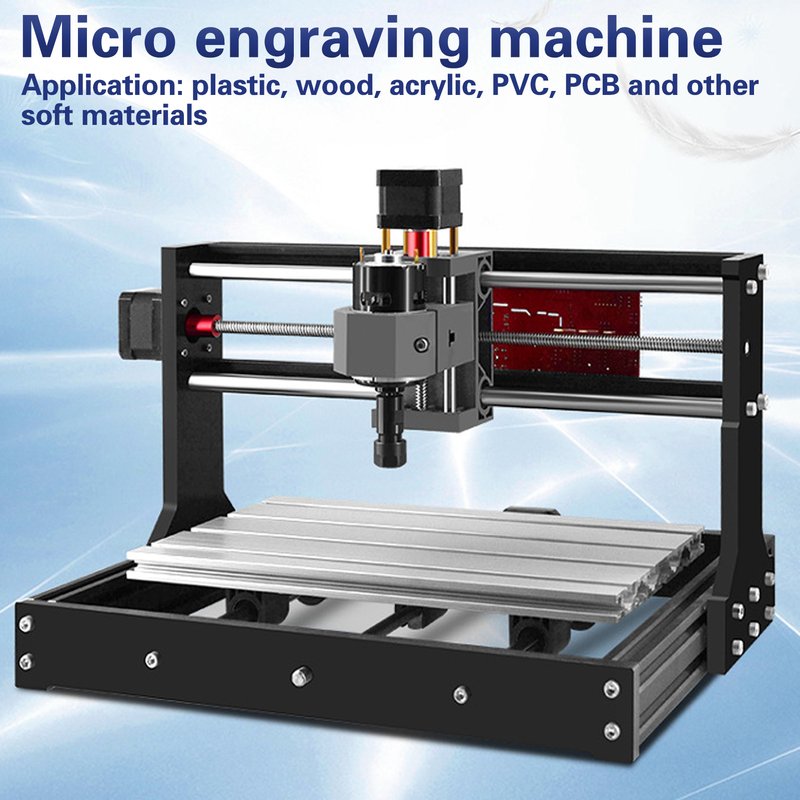

7. Suitable for plastic, wood, acrylic, PVC, polychlorinated biphenyls and other soft materials.

8. Offline control panel allows you to call programs and control devices without turning on your computer.

Specifications

Project type: CNC engraving machine

Material: Aluminum + Industrial Plastic + Plastic

Working range: 300x180x40mm

Frame size: Approximately 380 x 315 x 225mm / 15 x12.4 x 8.9in (XYZ does not include motor protruding parts)

Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Stepper motor: 1.3A 0.25N.m

Screw rod: T8 screw rod

Power supply: 24V 5.6A (110V-240V)

Supported systems: for Windows XP /Win 7 / Win 8 / Win10

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

2xProfile (360mm)

2xOptical axis (360mm)

1xLead screw T8-4*300Y axis

1xLead screw (360mm) X axis

1xLeft side panel

1xRight side panel

1xZ axis module

1xPower adapter

1xMotherboard

16xT-Nut 2020-M5

24xM5*14 screws

8xM3*14

4xNylon posts

1xToolkit

1xData cable

2x42 stepper motor

1xBase

1xER11 spindle motor chuck

1xClamping screw pack

1xPower cord

1xMotor cable
