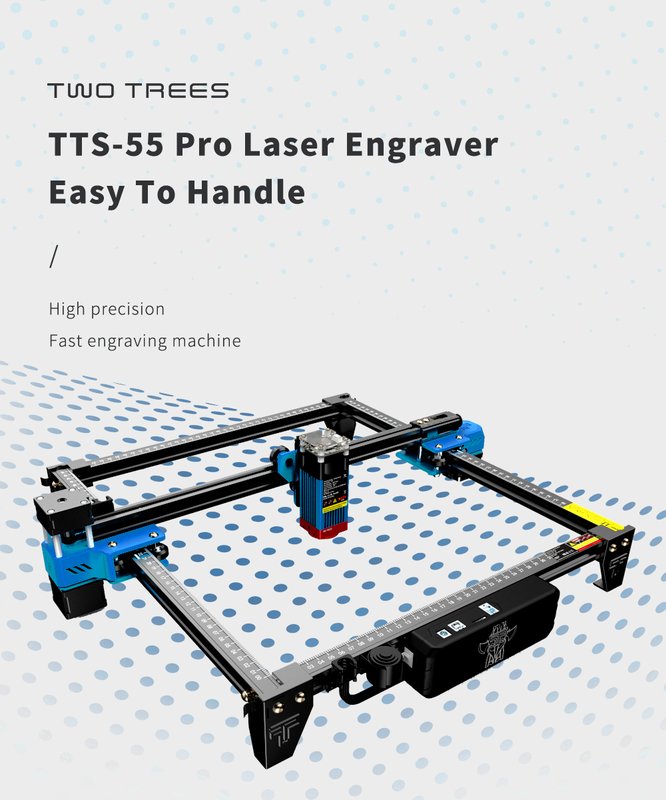

TwoTrees TTS-55 Pro 100-240V — Engraving Machine

Features

300*300mm engraving range: Large engraving area, unlimited engraving height, engraving as you like.

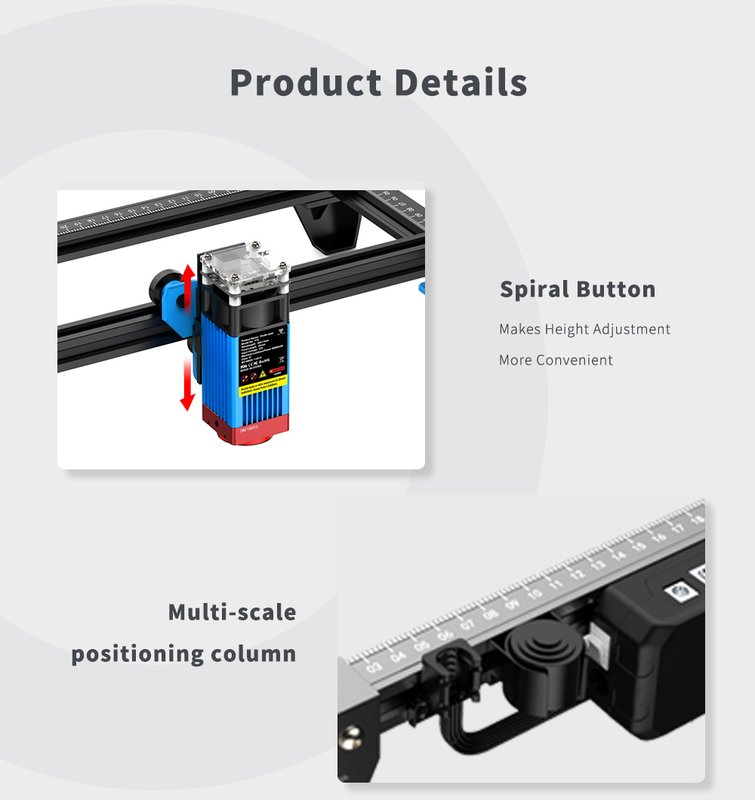

Lifting platform and X-axis belt adjustment design: The upgraded lifting device and X-axis belt design are convenient for moving up and down (0~40mm), and better control the engraving accuracy.

Bracket support: Anti-slip foot pad design, the fuselage is more stable, and hands free at the same time.

5.5W laser module: 5.5W laser module with heat sink, efficient laser engraving.

Motor integrated drive module: Modular design, more stable performance, three stepper motor drivers can provide faster moving speed and complete efficient engraving.

Fixed focus laser: Adopt spot compression polymerization technology to make the energy of the light source more concentrated, with high precision and high efficiency.

Engraving modes: Photo, text, scan, outline, pixel laser engraving.

Professional software control: Benbox, GrblController, LiteFire, Laser GRBL, etc.

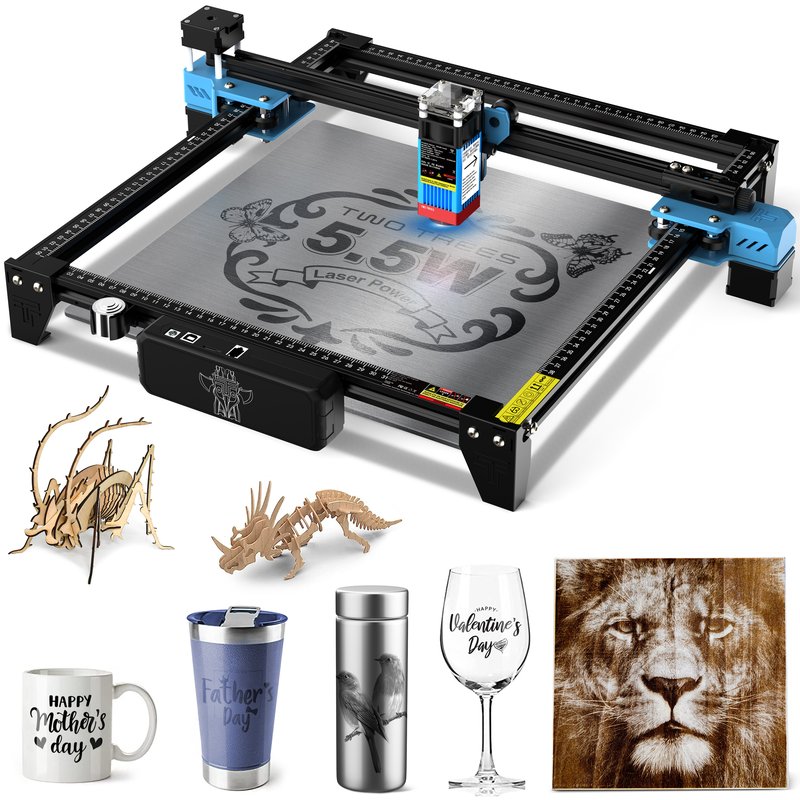

Supports engraving a variety of materials: Stainless steel, aluminum, plastic, ceramics, wood, bamboo, paper, leather, rubber, sponge paper, etc. (Does not support engraving metal, stone, glass, reflective or transparent materials.)

Specifications

Material: Aluminum alloy

Color: Blue

Plug: AU plug

Communication port: Micro USB

Power input: AC 100-240V

Input power: 35-40W

Laser power: 5000-5500mW

Laser wavelength: 445+/-5nm

Engraving area: 30*30cm/11.81*11.81in

Engraving accuracy: 0.01mm

System support: Win XP/7/8/10

Control board: LKS motherboard

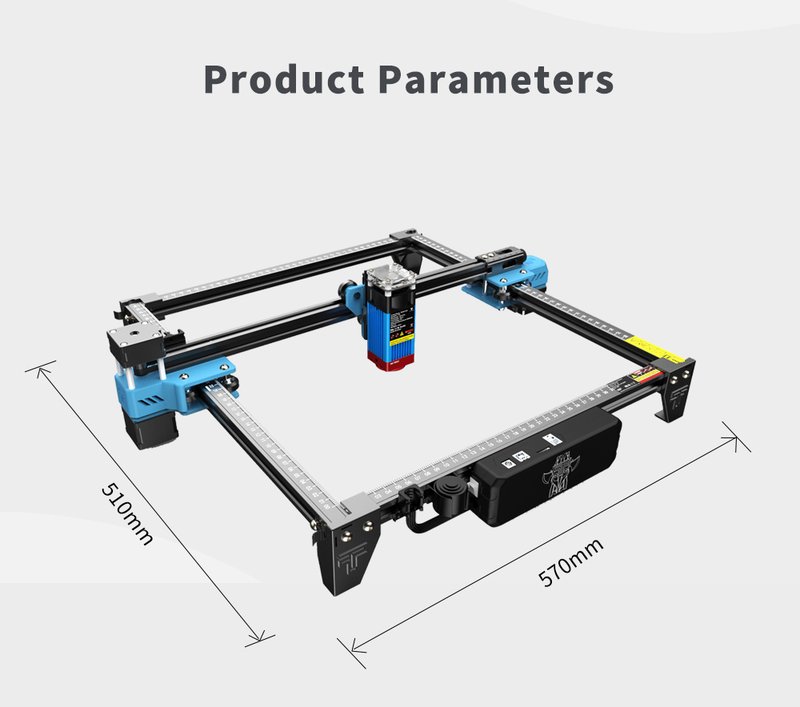

Product size: 56.8*48.5*5.6cm / 22.36*19.09*2.2in

Package size: 52.7*23.5*18.8cm / 20.75*9.25*7.4in

Package weight: 4050g

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

Packing List

11mm Fixed-length Column * 1

Foot Pad * 4

Y-axis Right Frame * 1

Y-axis Left Frame * 1

Y-axis Front Profile * 1

Y-axis Back Profile * 1

Bellows X-axis Holder * 1

Bellows Holder * 1

Fixed-length Column Seat * 1

5.5W Laser * 1

12V4A Power Adapter * 1

Motherboard and Wires * 1 Set

USB Cable * 1

SD Card * 1

Card Reader * 1

Tool Kit * 1

8mm M3 Screws * 2

6mm M3 Screws * 2

20mm M3 Screws * 2

20mm M4 Screws * 2

50mm M4 Screws * 3

10mm M5 Screws * 4

20mm M5 Screws * 8
