(6 110V 15 Victool — Jigsaw (Red)

Description:

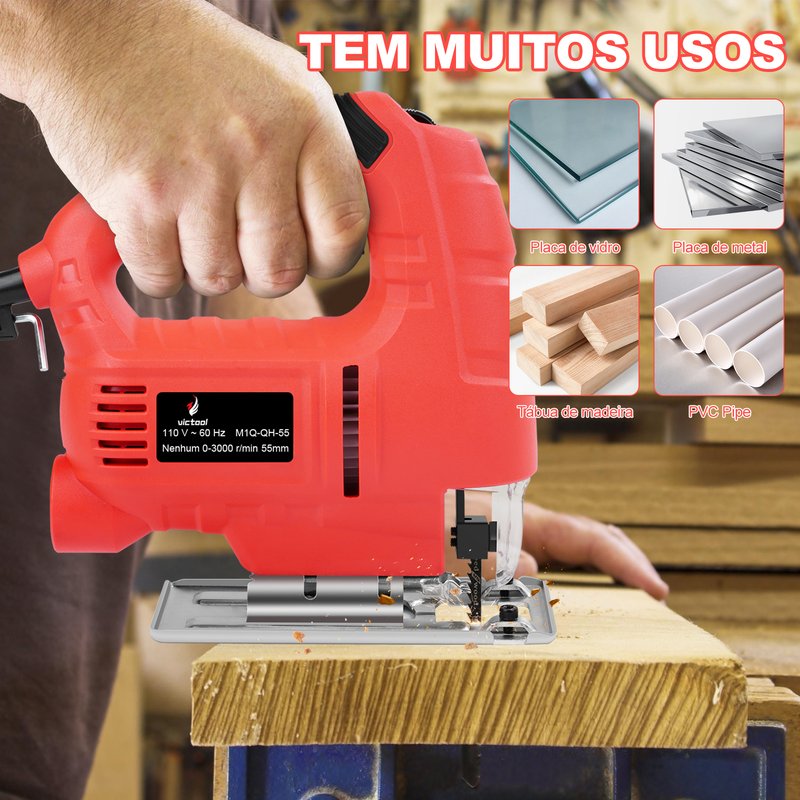

Jigsaw cutting is more free, you can bend and cut, not afraid of turning, it is a good tool for cutting wood, metal, plastic and other plates.

Features

1. All-copper motor: 800W high-power all-copper motor, good conductivity, strong power, long-term use without burning the machine.

2. Adjustable speed: with a rotary adjustment knob, the cutting speed can be adjusted, you can choose different gears for cutting according to different plates.

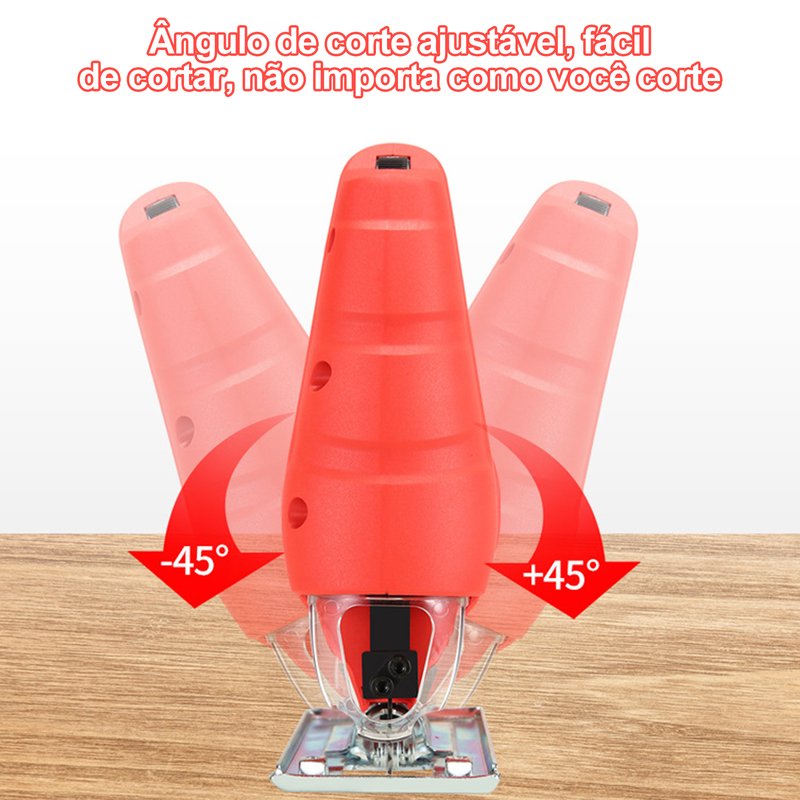

3. 45° inclined cutting: The cutting angle can be inclined 0°~45° to the left or right, and the inclined cutting makes the corner more suitable.

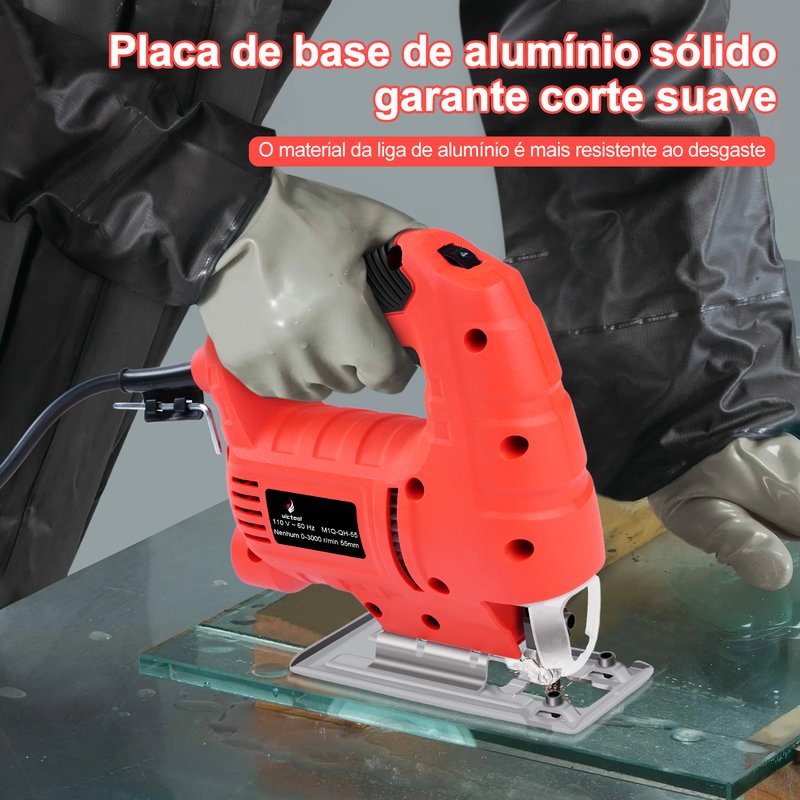

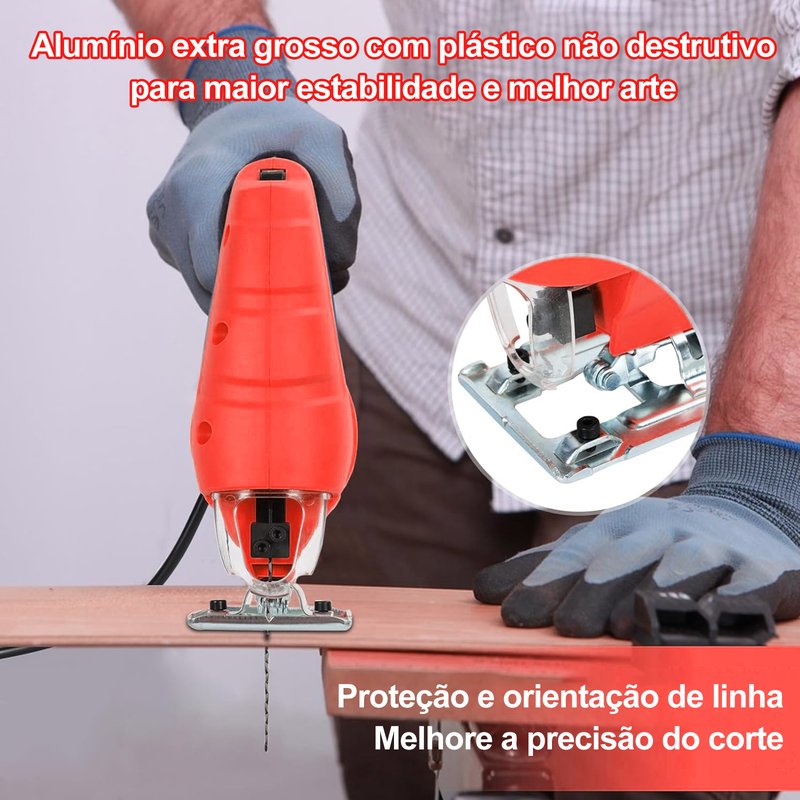

4. Enlarge the bottom plate: The aluminum bottom plate is more wear-resistant, and the bottom plate is enlarged and thickened to ensure smooth cutting.

5. Lock switch: lock switch design, press and hold the power switch, and then press the lock switch, you can continue to work without pressing the power switch.

6. Arbitrary line routing: jig saw straight line cutting and curved line cutting, using saw blade cutting, you can clearly observe the real-time status of cutting, without worrying about the deviation of the tangent line.

7. Precise cutting: equipped with a guide ruler with a range of 0~15cm, installed on the jig saw, you can get the precise size of the board.

Specifications

Material: PA plastic+copper

Color: Red black

Rated power: 800W

Rated voltage: 110V

Plug specification: BR Plug

Motor: All copper motor

Rated speed: 0-2800r/min adjustable

Guide ruler measuring range: 0-15cm

Cutting angle: 0-45°

Wood saw blade: 75mm

Metal saw blade: 50mm

Bottom plate size: 14.5*6.5cm

Product size: 21*20*6.5cm

Power cord length: 1.8m

Machine weight: about 1.3kg

T118A: Suitable for cutting thin metal sheets (0.5-1.5mm).

Blade thickness: 1.0mm, blade length: 76mm (including blade holder), 36 teeth per inch.

T244D: Scope of application: hard/soft wood, board, plastic PVC. Suitable for rapid cutting of curves

Saw length: 100mm, tooth length: 75mm, saw width: 6.5mm, tooth type: coarse tooth

T101BR: Lower cutting blade, cutting without debris. Suitable for plywood and decorative veneers with a thickness less than 50mm.

Blade thickness: 1.3mm, blade length: 100mm, 10 teeth per inch.

Certification: UL certification

Notes

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

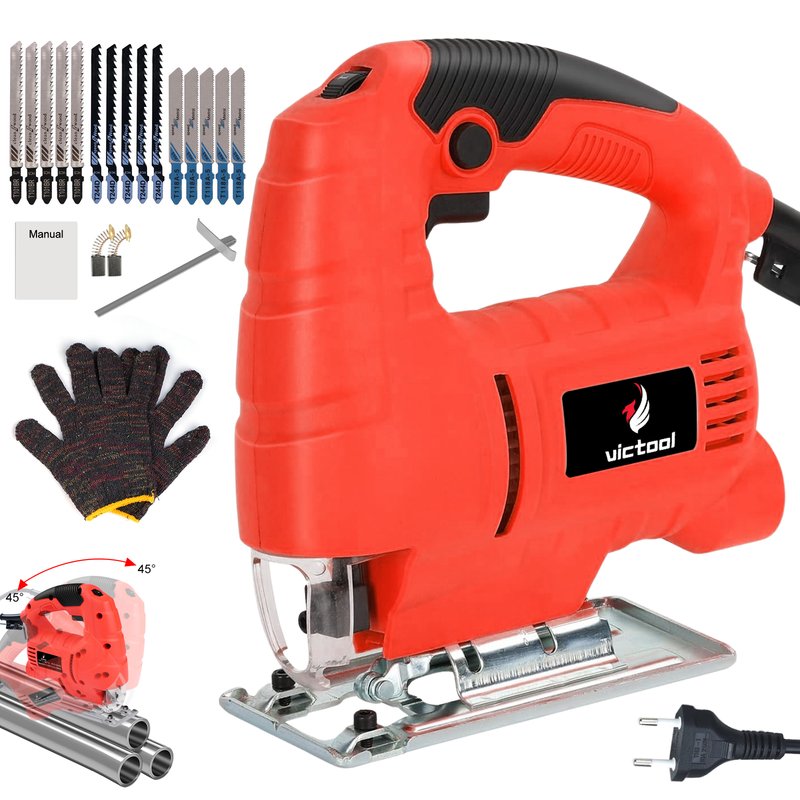

Packing List

Jigsaw host*1

Gloves*1 pair

Carbon brush*1 pair

T244D Wood saw blade*5

T118A Metal saw blade*5

T101BR Reverse tooth woodworking saw blade*5

Linear guide ruler*1

Hexagon wrench*1 (placed on the machine wire holder)

Instruction manual*1
