Twotrees DIY 5 20-80 — Fixed Roller
| Item No. | 3701-025933-01U0A |
| Category | Laser Engraving |
| English Name | Fixed Roller |
| Chinese Name | Twotrees，DIY滚轴套件，适用于玻璃杯旋转雕刻，具有 5 挡可调宽度设计，雕刻直径为 20-80 毫米 |
| HS Code | 8443999090 |
| Material | Iron |
| Application | Fastening |
Features

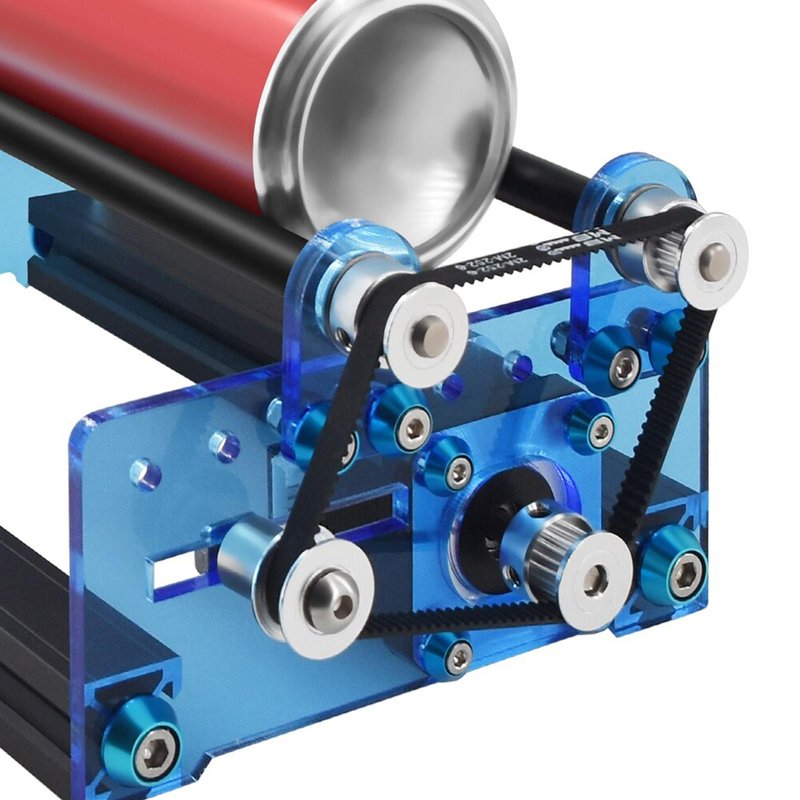

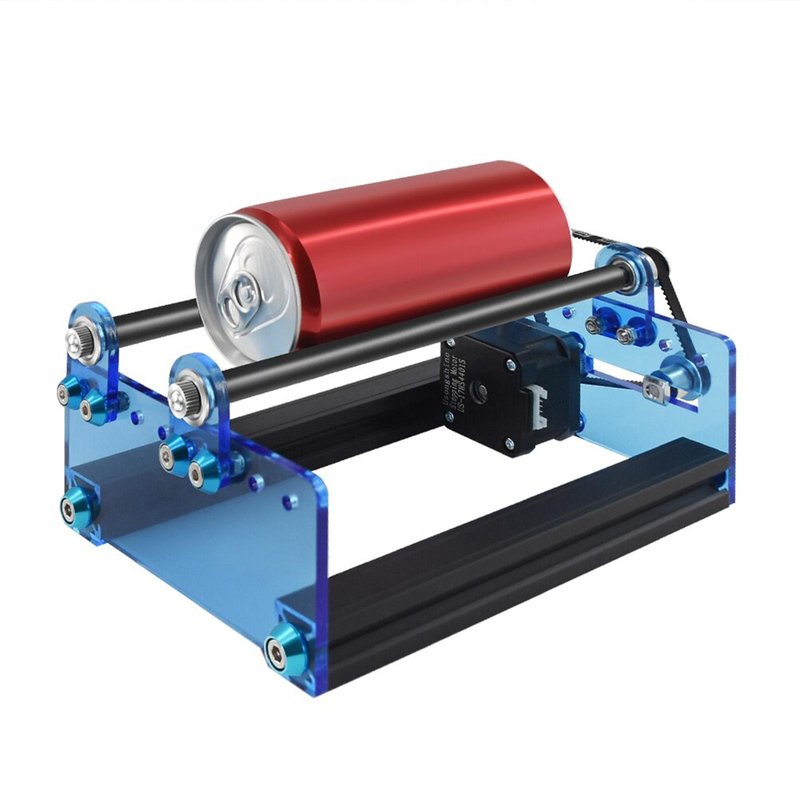

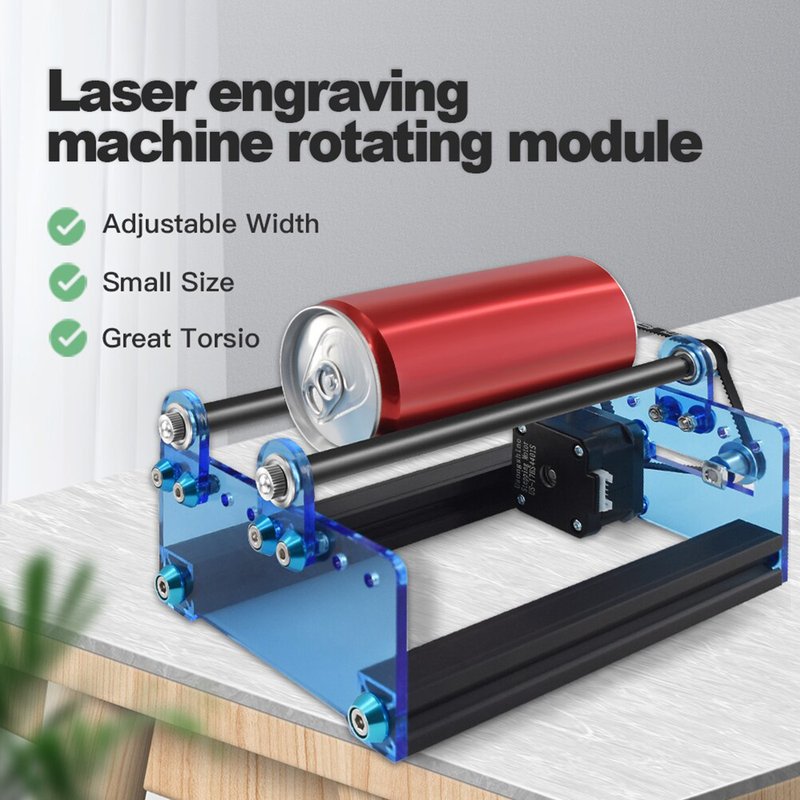

Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans, meets the engraving needs of different angles.
Engraving machine rotary module.
Rotary engraving for laser engraving cylindrical objects.
The placement width is adjustable.
Laser engraving machine accessories.
Specifications
Material: Acrylic & Aluminum Alloy
Color: Blue
Product Dimensions: 13*21*8.3 cm
Notes
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.
Packing List
Aluminum Alloy Gasket M3 * 4
Aluminum Alloy Gasket M4 * 8
Aluminum Alloy Gasket M5 * 4
Motor Side Plate * 1
Side Plate * 1
Timing Pulley Fixed Plate * 4
20-Tooth Timing Pulley (Inner Hole 5) * 1
20-Tooth Timing Pulley (Inner Hole 6) * 2
Idler Gear * 1
2020 Profile (L200mm) * 2
Motor Wire * 3

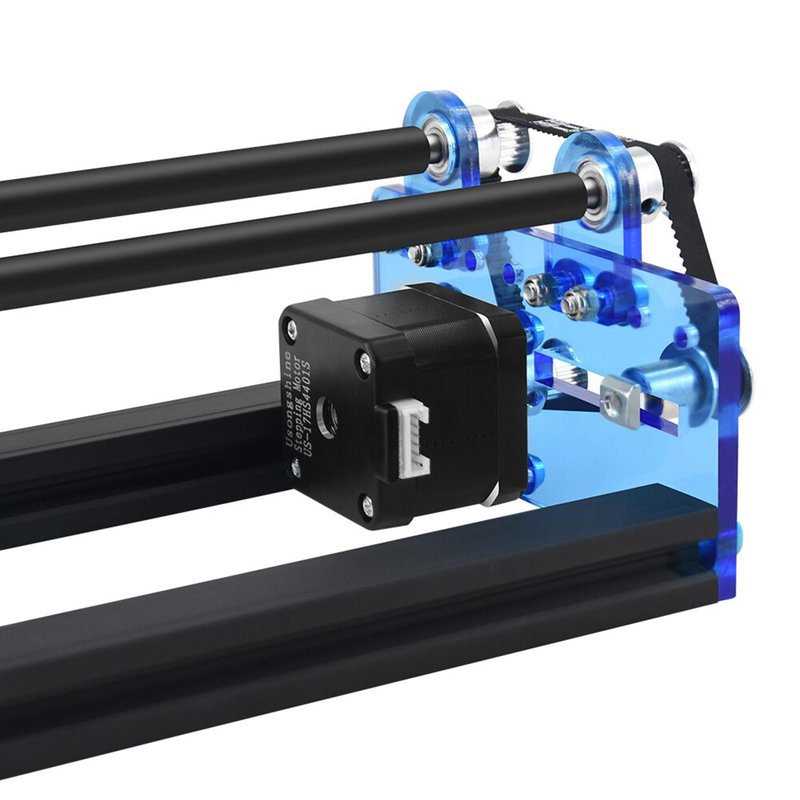

42 Stepping Motor * 1
Flange Bearing * 4
Stop Collar * 2
Rotating Roller * 2
Rubber Timing Belt * 1
Toolkit * 1
Screws and Nuts * 1
Packaging & Logistics
| Pieces per carton | 19 |
| Carton dimensions (L×W×H) | 34 × 30 × 26 cm |
| Carton weight | 20 kg |
