Varminpool 220v/60Hz Wi-Fi 7KW) — Heat Pump Machine

Heat Pump Machine · Item No. 1616-005617-01E0D

Unit Price (FOB)

US$ 364.90 / Piece · ¥ 2,465.56 CNY

Min. Order

1 Pieces (1 carton)

Item No.	1616-005617-01E0D
Category	Home & Equipment
English Name	Heat Pump Machine
Chinese Name	Varminpool空气源热泵泳池机 220v/60Hz 带 Wi-Fi 功能(定频7KW)
HS Code	8419190000
Material	Plastic, Iron
Application	Pool heating

Product Description

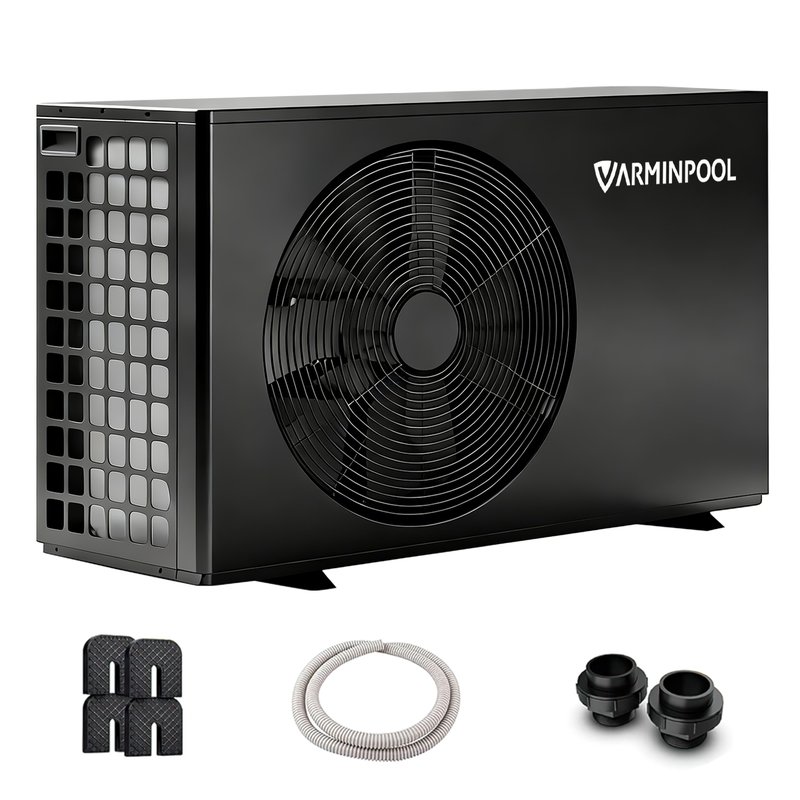

Air-source Swimming Pool Heat Pump

Model KSPF-007L1UA1

80'F Air 80'F Water 55% RH Heating capacity (Btu/h) 28300

Power input (Btu/h) 4015

COP 7.05

60'F Air 80'F Water 70% RH Heating capacity (Btu/h) 21800

Power input (Btu/h) 4450

COP 4.90

Power supply 208-230V/60Hz

Max power input (Btu/h) 5300

Max current (A) 8.5

Setting temperature range (Heating) 59°F~104°F

Setting temperature range (Cooling) 45°F~86°F

Running (Air) temperature range 19.4°F~109.4°F

Refrigerant type/quantity (Oz) R410A/17.6 Ozs

Water side heat exchanger Titanium tube heat exchanger

Pressure loss of water side : 20kPa

Water flow (gpm) 20

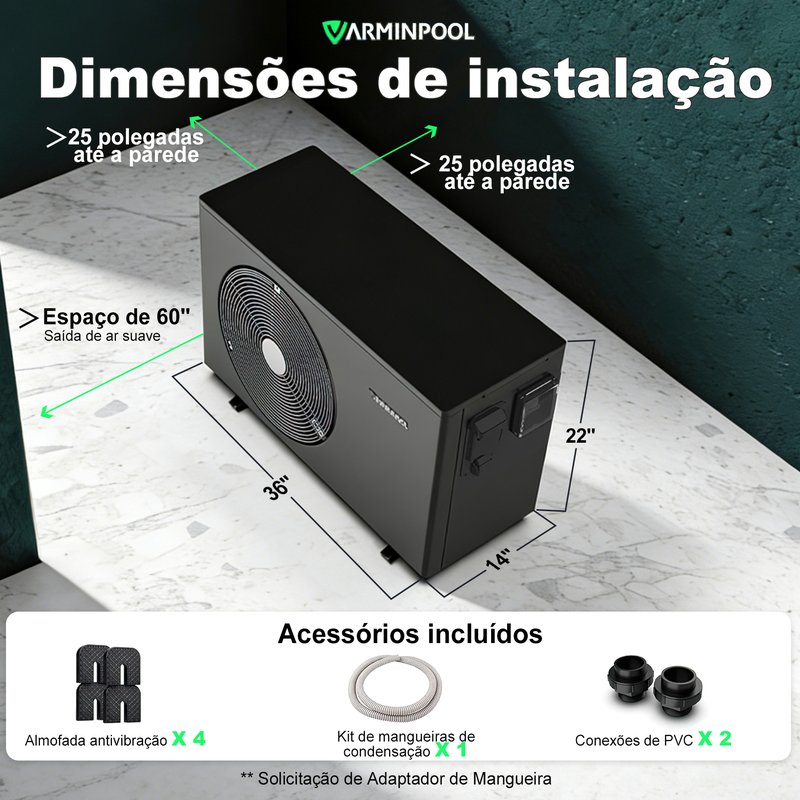

Net dimension L*W*H ( inch) 35*14*22

Packing dimension L*W*H ( inch) 40*18*25

Net weight (lbs) 91

Packing weight (lbs) 117

Maximum working pressure of heat exchanger 4.4 MPa

Maximum working pressure of exhaust side 4.4 MPa

Maximum working pressure of suction side 2.5 MPa

Water proof grape IPX4

Noise 52dB(A)
